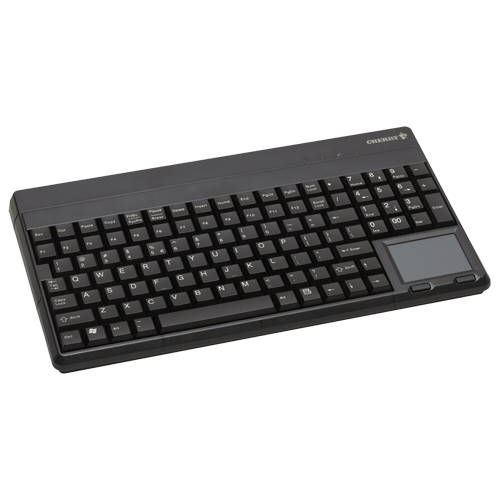

CHERRY SPOS G86-62401 Compact Keyboard Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Full QWERTY Key Layout in compact 360mm Form Factor Combines maximum space efficiency with uncompromised Alpha Numeric Data entry. USB Interface with Touchpad. For professional commercial use, e.g. in Rack mount systems, Airlines, Education, Banking etc.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full QWERTY enhanced US 106 Position Key Layout
  • Compact only 360 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • IP54 rated spill and dust resistant key section
  • Fully programmable USB 2.0 keyboard
  • Touchpad with 2 mouse buttons ensures easy cursor navigation with minimal Desktop surface use
  • Yellow status LED's for improved visibility in rooms with Artificial Illumination
  • Numeric Pad includes "00" Key for fast Currency entry
NameSizeDownload
Datasheet118kb chg86-62401_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG86-62401LAEB-U CHERRYSPOS 62401 Compact QWERTY Keyb Tchp USB Bl
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 106 Keys
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
N/A
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R, WHQL
