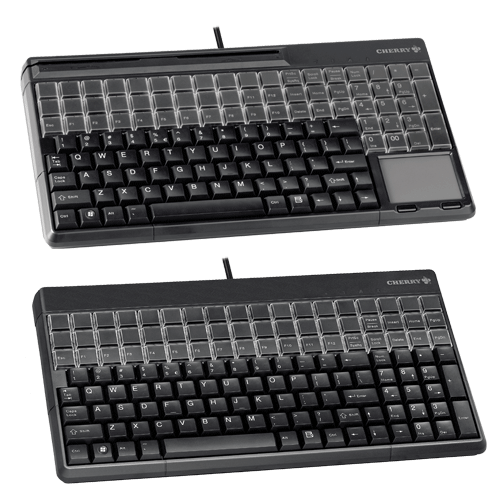

CHERRY SPOS G86-61400 Series Programmable QWERTY Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

Freely programmable USB-keyboard with Optional touchpad, mouse keys and/or magnetic card reader. The height of professionalism in both look and function. This fully programmable keyboard with extended alphanumeric layout and replaceable keys is designed first and foremost for commercial use at the POS. The model is extremely slim with its compact design and can also be inserted in recesses in the table.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full Alphanumeric Layout incl. Numeric Keypad
  • Compact only 360 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • IP54 rated spill and dust resistant key section
  • Flexible layout customization with exchangeable re-legendable keys
  • Fully programmable USB 2.0 keyboard
  • Factory option: 3-Track Magnetic Stripe Reader
  • Factory option: Touchpad with 2 mouse buttons
  • Comprehensive UPOS support
  • Integrated memory
  • Cut-out mounting capabilities (circumferential rim)
  • Pluggable feet
NameSizeDownload
Datasheet154kb chg86-61400series_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG86-61400LAEB-U CHERRYSPOS 61400 QWERTY Keyb USB Black
CHG86-61410LAEB-U CHERRYSPOS 61410 QWERTY Keyb MSR USB Black
CHG86-61411LAEB-U CHERRYSPOS 61411 QWERTY Keyb MSR Touchp USB Blk
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R
