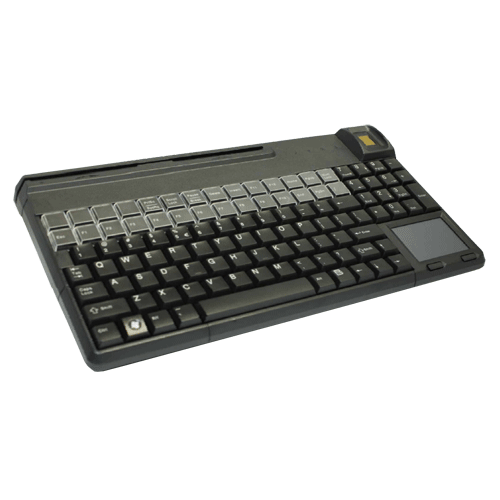

CHERRY SPOS BioMetric Series Programmable QWERTY Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

SPOS QWERTY Multifunctional Biometric Keyboard with Enhanced Key Layout and Optional Magnetic Card Reader and Touchpad for Secure POS Applications

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Integrates UPEK TCS2 TouchChip® Biometric Sensor
  • Save Precious Space Incorporating a Biometric reader, Touch Pad, and MSR into one Compact Keyboard Utilizing one USB Connection
  • Full QWERTY Key Layout in Compact 14" Form Factor Combines Maximal Space Efficiency with Uncompromised Alphanumeric Data Entry
  • Enhanced US 106 / 117 Position Key Layout
  • Robust Product Design with IP54 Spill and Dust Resistant Key Field for Harsh Environments
  • Fully Programmable Keyboard with 28 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
  • Option for Unlimited Programmability for all Keys in up to 3 Layers Provides Convenient Data Access
  • Pop-up Window for Comfortable Display of Programmed Keys
  • Optional High Performance 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
NameSizeDownload
Datasheet1,082kb chg86-62430_460series_datasheet.pdf

Products available to purchase

 SKUVendorName
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Sealing: IP54
Without Touchpad: 117 Keys of which 28 relegenable
With touch: 106 Keys of which 28 relegenable
Biometric Sensor: UPEK TCS2 TouchChip®
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 60 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 39 mm
Weight
1.4Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R, WHQL, WEEE, RoHS
