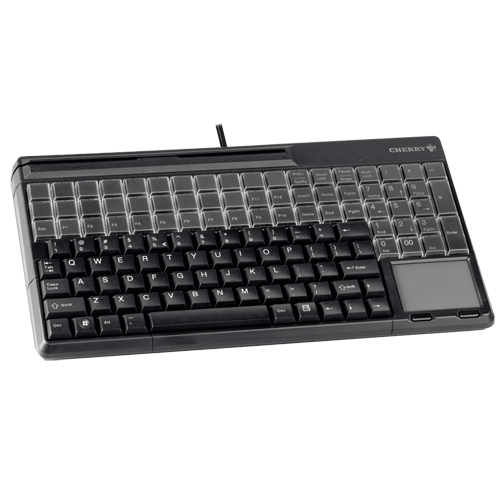

CHERRY SPOS 61511 QWERTY Keyb MSR touchp USB Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CHG86-61511LAEB-U
  • G86-61511EUADAA
  • CHERRY
  • G86-615xx
  • Login to view pricing and availability

CHERRY SPOS G86-61511Black 14" USB keyboard with 3-track encryptable MSR and touchpad. US 123 position key layout with 20 additional keys. 123 programmable and 60 relegendable keys. Includes ‘Cherry Tools’ configuration software and UPOS drivers.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full QWERTY Key Layout in Compact 14” Form Factor Combines Maximal Space Efficiency with Uncompromised Alphanumeric Data Entry
  • Enhanced US Int’l 135/123 Position Key Layout
  • Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
  • Plug & Play Configuration for all common POS Features
  • Unique Function Enhancement with ‘CHERRY Tools’ Virtual Programming
  • Fully Programmable Keyboard with 54/60 Relegendable Keys for Easy Layout Configuration and Quick Function Calls
  • Option for Unlimited Programmability of all Keys in up to 3 Layers Provides Convenient Data Access
  • Moving of Keys’ Allows for Easy Key Position Exchange Including Modifier Functions
  • High Performance encryptable 3-Track Magnetic Stripe Reader with Freely Programmable Headers and Terminators for Each Track
  • Dual Insertion for Bidirectional Swipe of Magnetic Stripe Card
  • Audible and Visual Indication of MSR Good Read
  • Powerful ‘CHERRY Tools’ Configuration Software Allows for Quick Product Set
NameSizeDownload
Datasheet111kb G86-615xx-Encrypted-Data-Sheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 135 Keys of which 54 relegenable
With touch: 123 Keys of which 64 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Tripple Data Encryption Algorithm (Triple DES) with Derived Unique Key per Transaction (DUKPT) key management
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA, Others on request. PCI DSS 3.0 compliant
Magnetic card reading speed: 10 - 152 cm/s
Magnetic card swipe direction: Bi-directional
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 72 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 360 x 198 x 38 mm
Weight
1.4 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, C-tick, cURus, CE, FCC, VCCI, RoHS, WHQL
