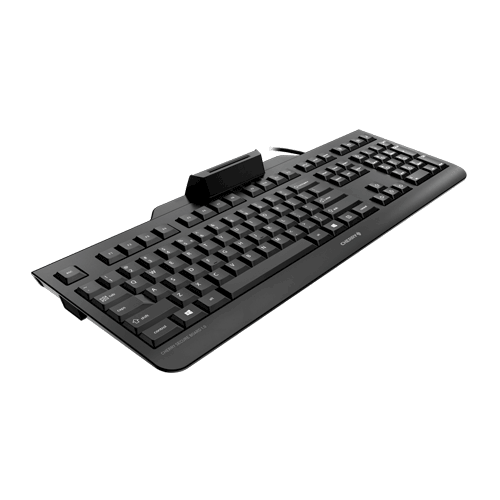

CHERRY Smart Board 1.0 Keyboard with Smart Card Reader

(Product may vary from image. Rely only on description for purchasing decisions.)

The SECURE BOARD 1.0 is an ergonomic keyboard with an integrated reader for smart cards and cards/tags with an RF/NFC interface. For added security and confidentiality, the keyboard can be switched to a secure mode. Now the device can authenticate itself with a certificate and the key transmission is encrypted. This renders hardware key loggers useless and because the standard keyboard channel is locked, BadUSB attacks cannot be carried out on it. Thin clients that have the necessary software integrated are particularly suitable for using these functions.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Intelligent security keyboard with integrated reader for smart cards and cards/tags with RF/NFC interface
  • Secure mode with authentication and encryption, especially with thin clients
  • PC/SC smart card reader, CCID compatible
  • Protocols: T=0, T=1, T=CL
  • Read/write with ISO 7816 and ISO 14443 A/B compliant cards
  • Flat design, low smart card contacting unit
  • Satisfies FIPS-201 requirements
  • DE version with DIN/GS compliant layout and meets with BGI-650 ergonomics guide
  • Standard drivers for Windows and Linux
  • One-handed operation of smart card module
  • Awarded the Blue Angel environmental seal
NameSizeDownload
Datasheet220kb jk-a0400_datasheet.pdf

Products available to purchase

 SKUVendorName
CHJKA0400SCB-U CHERRYSecure Board1.0 Keyboard with Smart Card Reader Blk

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: LPK Technology
Service life, standard key: > 10 million key operations
Number of Keys: 104 + 4
I/O Devices (Intergrated)
Smart Card reader:
Hardware Interface USB
Chip-card Protocols: T=0, T=1
Contact: Mechanical Swipe Reader
Software Interface: PC/SC, CCID
Mating Cycles: Approx. 100,000 operations
Compatible Chip Card types: ISO 7816 cards
Transmission Speed Reader to Card 420 kBits/Sec
Transmission Speed Reader to system: 12MBits/sec
Chip card pulse frequency: 4.8 MHz
RF/NFC Terminal
Compatible cards: ISO 14443A/B, ISO 15693 Cards and Tags
Range: < 5 cm
NFC: ISO/IEC 18092
NFC Tags: 1-5
Anti Collision: First card detected is active
Interfaces
USB
Cable Lenght
approx. 1.80 m
Current Consumption
typ. 350 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 65°C
External Dimensions (WxDxH)
approx. 458 x 188 x 46 mm
Weight
0.84 Kg
Reliability
> 10 mill Key operations
MTBF >80,000 Hours
Product Compliance
C-tick, CE, FCC, VCCI, VDE GS, cURus, FIPS 201
