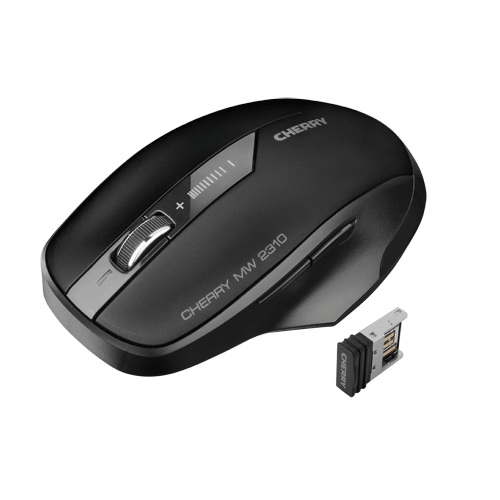

CHERRY MW-2310 Wireless Mouse

(Product may vary from image. Rely only on description for purchasing decisions.)

The CHERRY MW 2310 is multi-purpose CHERRY technology in an ergonomic design. Reliable, practical and flexible. The sophisticated wireless mouse from CHERRY. For people looking for superior performance at an affordable price.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Wireless 5 Button Mouse
  • 5-button mouse: infrared sensor and adjustable resolution (1000/1500/2000 dpi)
  • Nano USB receiver: able to stay in the notebook permanently
  • Long battery lifespan* thanks to energy-efficiency infrared sensor (*Using the supplied batteries, each with 2200mAh, allows a service life of 733 hours (at 6 mA) to be achieved. Assuming the mouse is used constantly for one hour a day and 230 work days a year, you will only need to change the battery after approx. 3 years)
  • Optimised for both left-handed and right-handed operation
  • Elegant touch due to the chrome plated scroll wheel with non-slip rubber coating
  • Simple installation; no technical knowledge required
  • Almost interference-free wireless 2.4 GHz technology (range of up to 10 metres)
NameSizeDownload
Datasheet36kb chmw2310_datasheet.pdf

Products available to purchase

 SKUVendorName
CHMW2310-WU CHERRYMW-2310 Energy Efficient 5 Button Mouse

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Mouse
Scanning: Infrared
Resolution: 1000/1500/2000 dpi (adjustable)
Number of Keys: 5
Mouse wheel Design: Scroll Wheel with Function Key
Design: Symmetrical
Communication Type
Wireless
2.400 GHz - 2.4835 GHz
Range 10M
Interfaces
Nano USB transmission Receiver
Cable Lenght
N/A
Current Consumption
Max.7 mA (Mouse)
Max. 40 mA (Receiver)
Operating Environment
0°C to 40°C
Storage Environment
-40°C to 55°C
External Dimensions (WxDxH)
Mouse: 75.52 x 119.96 x 38.32 mm
Receiver 13.1 x 18 x 5.7 mm
Weight
122 g (Mouse with Battery)
2 g (Receiver)
Reliability
MTBF (90) >80,000 hours
Product Compliance
C-tick, CE, FCC, cTUVus
