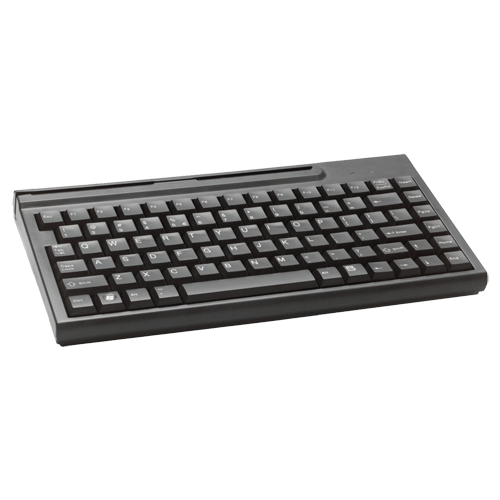

CHERRY MPOS Mini POS Keyboard Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Reduced-size "Mini" POS Keyboard with enhanced 83 Key layout, Fully Programmable. Offers IP54 rating and optional Magnetic Card reader

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Reduced size QWERTY enhanced US 83 Position Key Layout
  • Compact only 299.7 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • Robust Product Design with IP 54 Spill and Dust Resistant Key Field for Harsh Environments
  • Fully programmable in up to 3 layers
  • USB 2.0 keyboard
  • Optional high performance 3-track MSR
  • Comprehensive UPOS support
NameSizeDownload
Datasheet200kb chg86-51400_series_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG86-51400LAEB-U CHERRYMPOS 51400 Compact Keyb USB Black
CHG86-51410LAEB-U CHERRYMPOS 51410 Compact Keyb MSR USB Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 83
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 299.7 x 160.2 x 25.4 mm
Weight
0.929 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC, VCCI, Gost-R, WHQL
