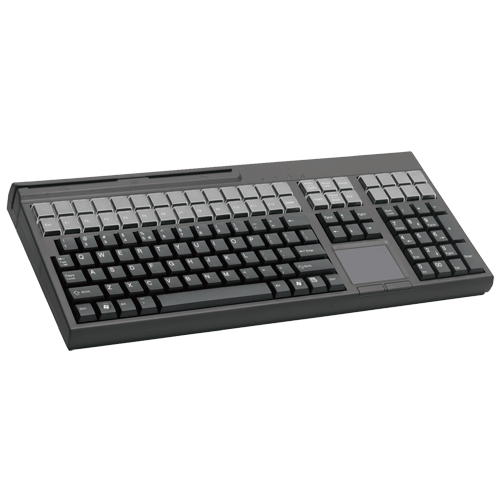

CHERRY LPOS G86-71400 series Programmable QWERTY Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

Full-size Multifunctional Keyboard with enhanced 131/127 Position Key layout, Fully Programmable. Offers IP54 rating and optional Magnetic Card reader and/or Touch Pad

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full size QWERTY enhanced US 131/127 Position Key Layout
  • Full size only 299.7 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • IP54 rated spill and dust resistant key section
  • Fully programmable with 42 relegendable Keys
  • USB 2.0 keyboard
  • Optional high performance 3-track MSR and/or Touch Pad
  • Touch Pad version reduce desktop space
  • Comprehensive UPOS support
NameSizeDownload
Brochure63kb chg86-71400_series_brochure.pdf

Products available to purchase

 SKUVendorName
CHG86-71400LAEB-U CHERRYLPOS 71400 QWERTY Keyboard USB Black
CHG86-71401LAEB-U CHERRYLPOS 71401 QWERTY Keyb with Touchp USB Black
CHG86-71410LAEB-U CHERRYLPOS 71410 QWERTY Keyb with MSR USB Black
CHG86-71411LAEB-U CHERRYLPOS 71411 QWERTY Keyb with MSR TchP USB Blk
CHS83810001 CHERRY1x2 black keycap for SPOS Horizontal
CHS83810003 CHERRY1x2 black Keycap for SPOS Vertical
CHS83810005 CHERRY1x2 Clear Lens for SPOS
CHS83810006 CHERRY2x2 black keycap (quad) for SPOS
CHS83810008 CHERRY2x2 Clear Lens cap (quad) for SPOS
CHG99-KEYSET-B CHERRYKeyset with dbl quad & sgl Black for SPOS
CHG99-KEYSET-i CHERRYKeyset with dbl quad & sgl Light Grey for SPOS

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 131 Keys of which 42 relegenable
With touch: 127 Keys of which 42 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
With MSR approx. 442 x 183 x 36 mm
Without MSR approx. 442 x 183 x 33 mm
Weight
1.5 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC Class B, VCCI, Gost-R, WHQL, RoHS
Warranty
3 Year limited factory warranty
