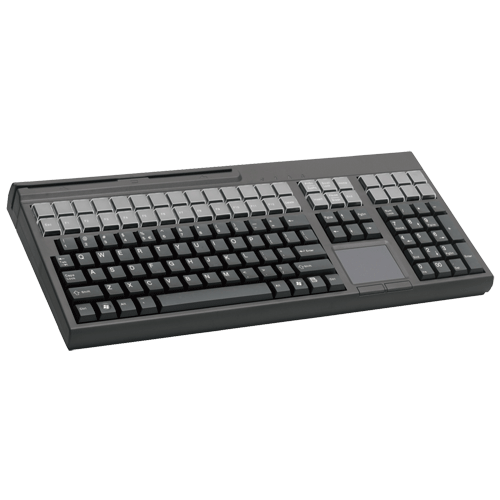

CHERRY LPOS 71411 QWERTY Keyb with MSR TchP USB Blk

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CHG86-71411LAEB-U
  • G86-71411EUADAA
  • CHERRY
  • G86-714XX
  • Login to view pricing and availability

LPOS 71411 QWERTY Keyb with MSR TchP USB Blk

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Full size QWERTY enhanced US 131/127 Position Key Layout
  • Full size only 299.7 mm width
  • User-friendly unstinted standard 19 mm key spacing
  • IP54 rated spill and dust resistant key section
  • Fully programmable with 42 relegendable Keys
  • USB 2.0 keyboard
  • Optional high performance 3-track MSR and/or Touch Pad
  • Touch Pad version reduce desktop space
  • Comprehensive UPOS support
NameSizeDownload
Brochure63kb chg86-71400_series_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ATK Technology
Service life, standard key: > 20 million key operations
Inscription technology: Laser
IP54 spill and dust resistant
Number of Keys:
Without Touchpad: 131 Keys of which 42 relegenable
With touch: 127 Keys of which 42 relegenable
Model dependent:
Touchpad: 1000 dpi resolution, 2 key-activated mouse buttons
I/O Devices (Intergrated)
Model Dependent
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator for each track
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s at 30Bit/cm
Data is decoded to Keyboard Scan-codes
Magnetic card swipe direction: from right to left
Interfaces
USB 2.0
Cable Lenght
approx. 1.85 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
With MSR approx. 442 x 183 x 36 mm
Without MSR approx. 442 x 183 x 33 mm
Weight
1.5 Kg
Reliability
Keyswitch Lifetime: 25 mill. operations
MSR: Durability 1 mill. cycles
Product Compliance
C-tick, BSMI, cURus, CE, FCC Class B, VCCI, Gost-R, WHQL, RoHS
Warranty
3 Year limited factory warranty
