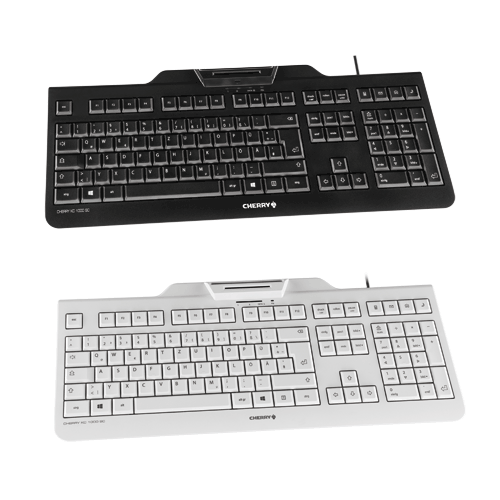

CHERRY KC1000 Keyboard with Smart Card Reader

(Product may vary from image. Rely only on description for purchasing decisions.)

Lasting reliability. Timeless elegance. Intelligent concept. CHERRY KC 1000 SC combines the benefits of a classic CHERRY office keyboard with the security-related requirements of a security keyboard.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Smart, wired security keyboard with integrated chip card terminal
  • Secure PIN entry
  • PC/SC smartcard reader
  • Protocols: T=0, T=1, S=8, S=9, S=10
  • EMV 2000 Level 1 approved
  • CCID compatible
  • Reading/writing ISO 7816 compliant smartcards
  • Flat design, low smart card contacting unit
  • Satisfies requirements defined by FIPS-201
  • German version with DIN/GS compliant layout
  • Driver support for Windows/MacOS-X/Linux
  • One-handed operation of smart card module
  • German version complies with BGI 650 guidance for ergonomics
  • Awarded the "Blaue Engel" environmental seal
NameSizeDownload
Datasheet113kb chjk-a0100_datasheet.pdf

Products available to purchase

 SKUVendorName
CHKC1000SCB-U CHERRYKC-1000 PC Keyboard with Smart Card Reader Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: LPK Technology
Service life, standard key: > 10 million key operations
Number of Keys: 104 + 4
I/O Devices (Intergrated)
Smart Card Reader:
Mechanical Type
Hardware Interface USB
Agency Approvals: EMV 2000 Level 1
Chip-card Protocols: T=0, T=1, S=8, S=9, S=10
Contact: Mechanical Swipe Reader
Software Interface: CT-APi, PC/SC
Mating Cycles: Approx. 100,000 operations
Compatible Chip CArd types: Reads & Writes on all ISO 7816 cards
Transmission Speed Reader to Card 420 kBits/Sec
Transmission Speed Reader to system: 12MBits/sec
Chip card pulse frequency: 4.8 MHz
Interfaces
USB
Cable Lenght
approx. 1.80 m
Current Consumption
typ. 100 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 65°C
External Dimensions (WxDxH)
approx. 458 x 188 x 46 mm
Weight
0.84 Kg
Reliability
> 10 mill Key operations
MTBF >80,000 Hours
Product Compliance
C-tick, CE, FCC, VCCI, VDE GS, cURus
