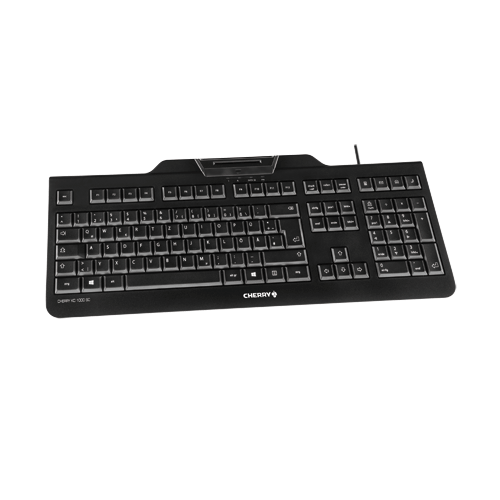

CHERRY KC-1000 PC Keyboard with Smart Card Reader Black

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CHKC1000SCB-U
  • JK-A0100EU-2
  • JK-A0100
  • Login to view pricing and availability

KC-1000 PC Keyboard with Smart Card Reader Black

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Smart, wired security keyboard with integrated chip card terminal
  • Secure PIN entry
  • PC/SC smartcard reader
  • Protocols: T=0, T=1, S=8, S=9, S=10
  • EMV 2000 Level 1 approved
  • CCID compatible
  • Reading/writing ISO 7816 compliant smartcards
  • Flat design, low smart card contacting unit
  • Satisfies requirements defined by FIPS-201
  • German version with DIN/GS compliant layout
  • Driver support for Windows/MacOS-X/Linux
  • One-handed operation of smart card module
  • German version complies with BGI 650 guidance for ergonomics
  • Awarded the "Blaue Engel" environmental seal
Datasheet113kb chjk-a0100_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Key technology: LPK Technology
Service life, standard key: > 10 million key operations
Number of Keys: 104 + 4
I/O Devices (Intergrated)
Smart Card Reader:
Mechanical Type
Hardware Interface USB
Agency Approvals: EMV 2000 Level 1
Chip-card Protocols: T=0, T=1, S=8, S=9, S=10
Contact: Mechanical Swipe Reader
Software Interface: CT-APi, PC/SC
Mating Cycles: Approx. 100,000 operations
Compatible Chip CArd types: Reads & Writes on all ISO 7816 cards
Transmission Speed Reader to Card 420 kBits/Sec
Transmission Speed Reader to system: 12MBits/sec
Chip card pulse frequency: 4.8 MHz
Cable Lenght
approx. 1.80 m
Current Consumption
typ. 100 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 65°C
External Dimensions (WxDxH)
approx. 458 x 188 x 46 mm
0.84 Kg
> 10 mill Key operations
MTBF >80,000 Hours
Product Compliance
C-tick, CE, FCC, VCCI, VDE GS, cURus
