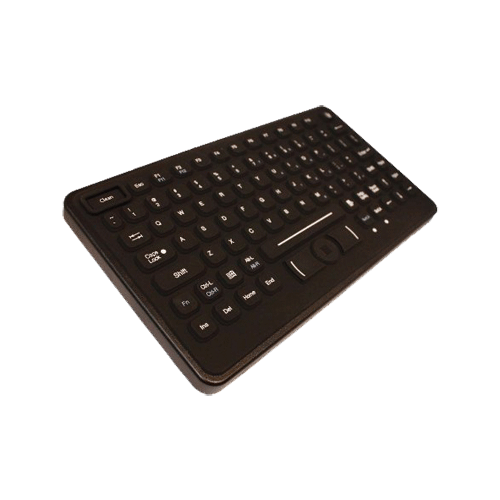

CHERRY J84-2120 Backlit Washable Keyboard with Pointing Device

(Product may vary from image. Rely only on description for purchasing decisions.)

Corded, Washable, Backlit Keyboard with integrated pointing device for Medical and Industrial Applications

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Compact, unique, east-to-wipe Key-top
  • Clean Key - prevents data from being sent while keyboards is cleaned
  • Rugged and Fully Sealed rubber top Casing with NEMA 4 Rating
  • Selectable Backlit Keyfield, 4 level of Brightness
  • Low Power, sealed optical pointing device
NameSizeDownload
Datasheet128kb chj84-2120_datasheet.pdf

Products available to purchase

 SKUVendorName
CHJ84-2120ABL-U CHERRYJ84-2120 Washable Keyboard USB Blue

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Service life, standard key: > 3 million key operations
Fully Sealed rubber top Casing
Number of Keys: 83
I/O Devices (Intergrated)
N/A
Interfaces
USB 2.0
Cable Lenght
approx. 1.02 m
Current Consumption
typ. 250 mA with Backlighting at Max. Brightness
Operating Environment
-40°C to 70°C
Storage Environment
-55°C to 70°C
External Dimensions (WxDxH)
approx. 290 x 162 x 48 mm
Weight
0.889 Kg
Reliability
Keyswitch Life 3 mill. operations
Product Compliance
C-tick, CE, FCC Class B, UL 60950, NEMA 4
