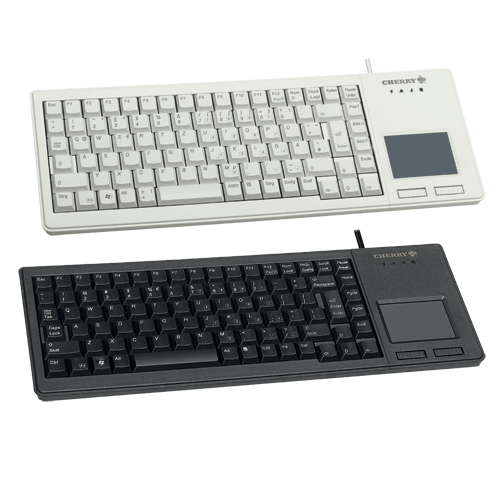

CHERRY G84-5500 XS Keyboard Series with Touchpad

(Product may vary from image. Rely only on description for purchasing decisions.)

Small, flat and extremely robust.The "XS Touchpad Keyboard" (G84-5500) combines comfortable mouse control with compact dimensions. The mouse can be controlled easily and precisely via the large touchpad with two mouse keys.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • High-quality touchpad with two mouse buttons for convenient control of the cursor
  • High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
  • Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
  • Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
  • Standardised measurements and installation dimensions of the complete XS product family - the keyboard can be adapted to every application
  • Lightweight - for applications where every gram counts
  • Plug & Play - can be used with the operating system's standard drivers
  • Supports Code Set 3 and UnifiedPOS
  • Fastening option for permanent installation
  • Detachable pluggable feet for individually adjusting the tilt of the keyboard
  • Freely programmable keys for even more time-saving operation
Datasheet151kb chg84-5500_datasheet.pdf

Products available to purchase

CHG84-5500LMEB-K CHERRYG84-5500 XS 88 Key keyb with Touchpad PS2 Blk
CHG84-5500LMEB-U CHERRYG84-5500 XS 88 Key keyb with Touchpad USB Blk

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Key technology: ML Technology
Operation Characteristics: Linear
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 88
Trouchpad: Optical, 1000dpi resolution, 2 keys
I/O Devices (Intergrated)
USB or PS2
Cable Lenght
approx. 2.50 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 60°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 374 x 139x 18mm
0.54 Kg
MTBF > 4.9 mill. Hours
Product Compliance
C-tick, BSMI, VDE GS, CE, FCC, UL, VCCI, cURus
