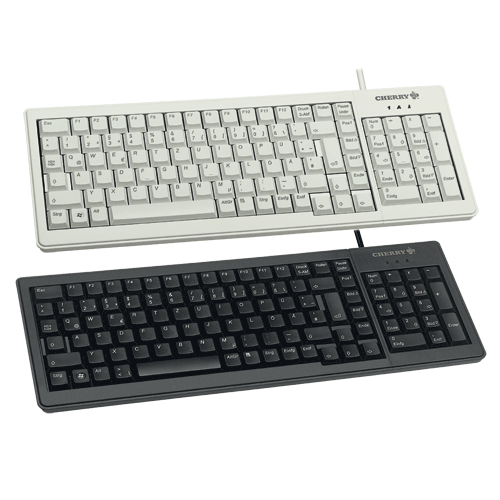

CHERRY G84-5200 XS Complete Keyboard Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Small, flat and extremely robustThe compact keyboard "XS Complete" (G84-5200) offers a full keyboard layout complete with number block and is ideal for all applications with limited space and requiring frequent number entries.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Complete layout with numeric keypad. Ideal for applications requiring the frequent input of figures
  • High degree of reliability and precise keystroke feel thanks to individual keys with Gold Crosspoint contacts (Cherry ML technology)
  • Ideal for continuous usage due to the long operating life in excess of 20 million key confirmations per individual key
  • Compact dimensions and very low overall build height, ideal for restricted spaces and for 19" applications
  • Standardised measurements and installation dimensions ofthe complete XS product family - the keyboard can be adapted to every application
  • Lightweight - for applications where every gram counts
  • Plug & Play - can be used with the operating system's standard drivers
  • Supports Code Set 3 and UnifiedPOS
  • Fastening option for permanent installation
  • Detachable pluggable feet for individually adjusting the tilt of the keyboard
  • Freely programmable keys for even more time-saving operation
  • USB & PS/2 connection
  • Available in Black & Ligh
Datasheet69kb chg84-5200_datasheet.pdf

Products available to purchase

CHG84-5200LMEB-UK CHERRYG84-5200 XS Compl 103 Key Keyb USB PS2 Blk

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Key technology: ML Technology
Operation Characteristics: Linear
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 103
I/O Devices (Intergrated)
USB or PS2
Cable Lenght
approx. 2.50 m
Current Consumption
typ. 25 mA
Operating Environment
0°C to 60°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 374 x 139 x 18 mm
0.55 Kg
MTBF > 11.4 mill. hours
Product Compliance
C-tick, VDE GS, CE, FCC, UL, VCCI, cURus
