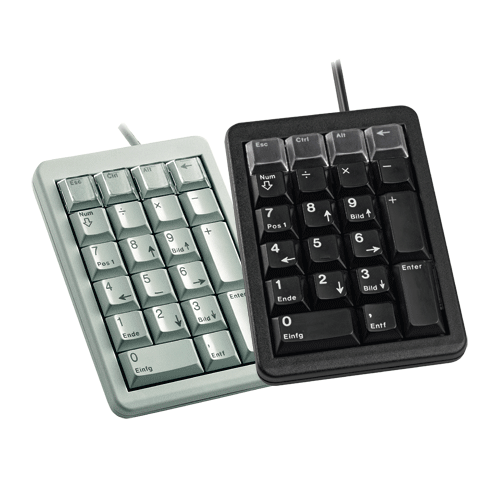

CHERRY G84-4700 Numeric Keypad Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Individually programmable keys! Whether for numerical inputs, controls or for frequent number entry - the programmable keyboard is the ideal accessory for notebooks. All keys can be user-defined with up to 24 characters per key.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Individual keys with Gold Crosspoint contacts (ML technology)
  • Designed for continuous usage - over 20 mill. Confirmations per key
  • Numeric block with 4 additional, individually inscribable function keys
  • High level of reliability and unique precision confirmation feeling
  • Programming of alternative key codes e.g. [.], [,],[00], [000]
  • Suitable for left and right-handed use
  • Additional programming of software macros via the high-performance configuration software "Cherry Tools"
  • Can be used with the standard drivers of the operating system
  • USB or PS/2 connection
  • Available in Black & Light Grey
NameSizeDownload
Datasheet56kb chg84-4700_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG84-4700LMUB-K CHERRYG84-4700 Numeric Keypad 21 Key PS2 Black
CHG84-4700LMUi-K CHERRYG84-4700 Numeric Keypad 21 Key PS2 L Gry
CHG84-4700PMUi-K CHERRYG84-4700 Numeric Keypad 21 Key PS2 Light Gr
CHG84-4700LMUB-U CHERRYG84-4700 Numeric Keypad 21 Key USB Black
CHG84-4700LMUi-U CHERRYG84-4700 Numeric Keypad 21 Key USB L Gry

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ML Technology
Operation Characteristics: Linear
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 21
I/O Devices (Intergrated)
N/A
Interfaces
USB or PS2 (PS2 pass through connector)
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 5 mA
Operating Environment
0°C to 50°C
Storage Environment
-25°C to 65°C
External Dimensions (WxDxH)
approx. 90 x 132 x 36 mm
Weight
PS2: 0.22 Kg
USB: 0.185 Kg
Reliability
MTBF > 100,000 Hours
MCBF > 10 bill. operations
Product Compliance
C-tick, BSMI, VDE GS, CE, FCC, UL, VCCI
