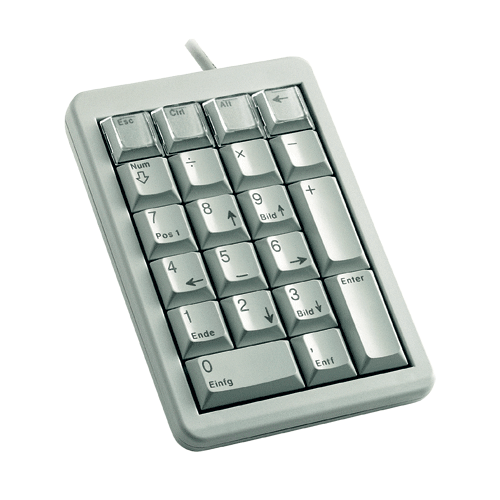

CHERRY G84-4700 Numeric Keypad 21 Key USB L Gry

(Product may vary from image. Rely only on description for purchasing decisions.)
  • CHG84-4700LMUi-U
  • CHG84-4700LMUi-U
  • CHERRY
  • G84-4700
  • Login to view pricing and availability

G84-4700 Numeric Keypad 21 Key USB L Gry

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Individual keys with Gold Crosspoint contacts (ML technology)
  • Designed for continuous usage - over 20 mill. Confirmations per key
  • Numeric block with 4 additional, individually inscribable function keys
  • High level of reliability and unique precision confirmation feeling
  • Programming of alternative key codes e.g. [.], [,],[00], [000]
  • Suitable for left and right-handed use
  • Additional programming of software macros via the high-performance configuration software "Cherry Tools"
  • Can be used with the standard drivers of the operating system
  • USB or PS/2 connection
  • Available in Black & Light Grey
NameSizeDownload
Datasheet56kb chg84-4700_datasheet.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ML Technology
Operation Characteristics: Linear
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 21
I/O Devices (Intergrated)
N/A
Interfaces
USB or PS2 (PS2 pass through connector)
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 5 mA
Operating Environment
0°C to 50°C
Storage Environment
-25°C to 65°C
External Dimensions (WxDxH)
approx. 90 x 132 x 36 mm
Weight
PS2: 0.22 Kg
USB: 0.185 Kg
Reliability
MTBF > 100,000 Hours
MCBF > 10 bill. operations
Product Compliance
C-tick, BSMI, VDE GS, CE, FCC, UL, VCCI
