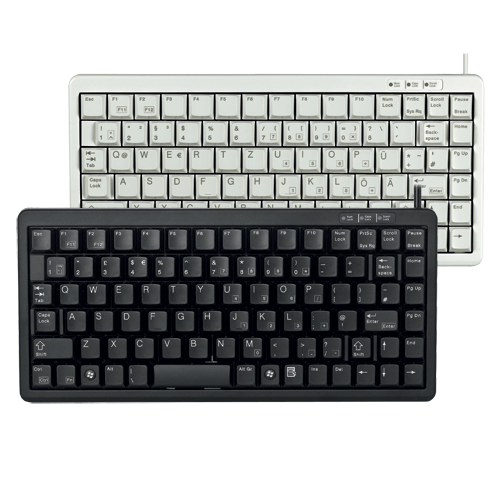

CHERRY G84-4100 Compact Keyboard Series

(Product may vary from image. Rely only on description for purchasing decisions.)

Perfection for even the smallest of spaces!This compact keyboard is the perfect solution for users with only limited space available and low weight requirements. For example, applications in the banking sector, medical institutions or portable systems. Also suitable for 19-inch applications. This keyboard is perfectly suited for slim-line PCs and laptops and can be enhanced optimally with the numeric block G84-4700

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Individual keys with Gold Crosspoint contacts (ML technology)
  • Designed for continuous usage - over 20 mill. Confirmations per key
  • High level of reliability and unique precision confirmation feeling
  • Minimal space requirements
  • Lightweight
  • Can also be delivered without "Windows® keys" (83 keys)
  • Complete functions of a standard keyboard
  • Can be used with the standard drivers of the operating system
  • Ideal for 19" applications and mobile use
  • USB or PS/2 connection
  • Available in Black & Light Grey
NameSizeDownload
Datasheet61kb chg84-4100_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG84-4100LMUB-UK CHERRYG84-4100 Compact 83 Key Keyb USB PS2
CHG84-4100LMUi-UK CHERRYG84-4100 Compact 83 Key Keyb USB PS2 L Grey
CHG84-4100LMMB-UK CHERRYG84-4100 Compact 86 Key Keyb USB PS2 Black
CHG86-61401LAEB-U CHERRYSPOS 61401 QWERTY Keyb Touchpad USB Blk

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: ML Technology
Operation Characteristics: Linear
Service life, standard key: > 20 million key operations
Inscription technology: Laser
Number of Keys: 83-86
I/O Devices (Intergrated)
N/A
Interfaces
USB & PS2 (via Adapter)
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 16 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 282 x 132 x 26 mm
Weight
0.4 Kg
Reliability
MTBF > 169,300 Hours
MCBF > 10 bill. operations
Product Compliance
C-tick, BSMI, VDE GS, CE, FCC, UL, VCCI
