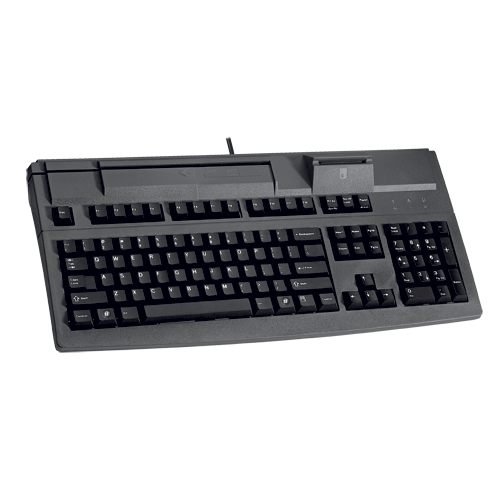

CHERRY G81-8000 MultiBoard V2 Business Keyboard with MSR & SmartCard Reader

(Product may vary from image. Rely only on description for purchasing decisions.)

Programmable compact keyboard with built-in magnetic card reader and Smartcard reader. Are you looking for a robust and reliable keyboard with programmable magnetic card reader? The MultiBoard G81-8000 is the ideal solution. The keys can also be programmed individually.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Mechanical individual keys with membrane contact switches (FTSC technology)
  • Designed for continuous usage - over 50 mill. confirmations per key
  • Robust and reliable
  • Fully Programmable
  • Programmable 3-track magnetic card reader
  • Smartcard reader
  • UPOS for Windows® and Linux, client-server architectures supported
  • Efficient configuration with professional Cherry Tools Software
NameSizeDownload
Datasheet71kb chg81-8040_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG81-8040LFEB-U CHERRYG81-8040 Multiboard V2 USB Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: FTSC
Operating Characteristics: Linear
Inscription technology: Laser
Service life, standard key: > 50 million key operations
Number of Keys: 104
Number of programmable keys: 43
I/O Devices (Intergrated)
Magnetic card tracks: Track 1, 2 & 3
Freely programmable; header and terminator, extended HEX Codes, Sound
Magnetic card standards: ISO 7811/-12, JIS 1/2, AAMVA,
Magnetic card reading speed: 8 - 318 cm/s
Magnetic card reading cycles: approx. 800000 reading cycles
Magnetic card swipe direction: from right to left
Chipcard:
Agency Approvals: EMV 2000 Level 1
Chip-card protocols: T=0, T=1, S=8, S=9, S=10
Contact: mechanical swipe reader
Software interface: CT-Api, PC/SC, CCID
Mating cycles: approx. 100,000 operations
Compatible chip card types: Reads and writes on all ISO7816 cards
Transmission speed reader <==> card: 412,903 Bit/s
Transmission speed reader <==> system: max. 12 MBit/s
Chip card pulse frequency: 4.8 MHz
Interfaces
USB
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 190 mA, <2.5 mA in USB Suspend Mode
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 470 x 220 x 64 mm
Weight
1.95 Kg
Reliability
MTBF > 100,000 Hours
MCBF > 10 bill. operations
Product Compliance
C-tick, cURus, VDE GS, CE, FCC, VCCI
