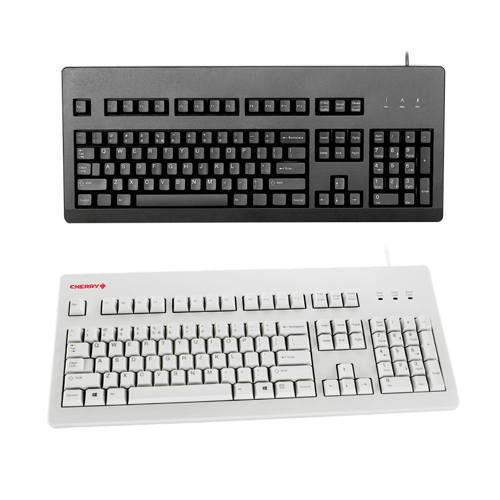

CHERRY G80-3494 MX-Board Silent 104 Key Business Keyboard

(Product may vary from image. Rely only on description for purchasing decisions.)

The G80-3000 has been one of the most popular mechanical keyboards on the market for decades, having become a true classic. Thanks to a purist feature set, a timeless design and its outstanding precision, the G80-3000 remains a bestseller. To continue its success, CHERRY updated this proven keyboard with the latest MX Silent technology. The result is a straightforward, high-end keyboard, which is ideally suited for volume-sensitive environments such as large rooms or community offices, enabling silent keystrokes with CHERRYs patented noise reduction technology without giving up on its uncompromising writing performance. Also implemented is “N-Key Rollover” functionality, which allows up to 14 keys to be pressed simultaneously without “ghost” keypress effect.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Precision key switches - Made in Germany (CHERRY MX technology)
  • High-quality keyboard with laser-etched keycaps for demanding tasks and the highest performance
  • CHERRY MX Silent switches with Gold Crosspoint contact technology
  • Noise-optimized MX key switch version with patented noise reduction, using an integrated 2-component stem which clearly minimizes noise at top-out and bottom-out
  • Self-cleaning contacts, dust- and dirt-resistant
  • Over 50 million keystrokes per switch without compromising quality
  • Long-lasting safe switching performance with renowned "original CHERRY quality", tried-and-tested a billion times over
  • N-key rollover: Simultaneous operations of up to 14 keys without any key ghosting effects
  • PC and Mac compatible over USB
Datasheet91kb chg80-3494_datasheet.pdf

Products available to purchase

CHG80-3494LLEB-UK CHERRYG80-3494 MX-Board Silent (MX Black) Business Keyb
CHG80-3494LYEB-UK CHERRYG80-3494 MX-Board Silent (MX Red) Business Keyb

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Key technology: MX Silent Technology
Operation Characteristics: Black Switch Silent (Linear 60 cN or Red Switch Silent (Linear 45 cN)
Service life, standard key: > 50 million key operations
Inscription Technology: Laser
Number of Keys: 104 Keys
I/O Devices (Intergrated)
USB or PS2 (via Adapter)
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 15 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 470 x 195 x 44 mm (Keyboard)
935 g
MTBF > 80,000 Hours
MCBF > 1 Bill. Operations
Product Compliance
