CHERRY G80-11900 Touchboard Business Keyboard Series

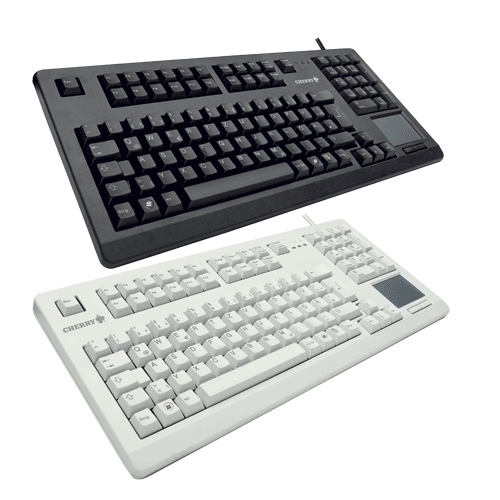

(Product may vary from image. Rely only on description for purchasing decisions.)

Compact keyboard with built-in touchpad, The multifunctional TouchBoard is the perfect solution for limited spaces in situations requiring the functions of a "mouse". Particularly in hard industrial applications, the Cherry keyboard shows what she is made of. The model combines outstanding quality with long service life and precise, easy-to-operate touchpad.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
12 months
  • Individual keys with Gold Crosspoint contacts (MX technology)
  • Designed for continuous usage - over 50 mill. confirmations per key
  • Robust and reliable
  • Space-saving and ergonomic
  • Ideal for limited space and 19" applications
  • Can be used with the standard drivers of the operating system
  • USB keyboard: the following keys can be programmed freely using KeyM@n software (software macros) in 3 levels (single confirmation in combination with "CTRL", in combination with "SHIFT"): function keys "F1"-"F12", "INSERT", "DELETE", "POSITION1", "END", "PAGE-UP", "PAGE-DOWN", "PRINT", "PAUSE", comma and zero in the numeric field.
  • Available in Black and Light Grey (special order)
NameSizeDownload
Datasheet63kb chg80-11900_datasheet.pdf

Products available to purchase

 SKUVendorName
CHG80-11900LLUB-K CHERRYG80-11900 Touchboard (MX Black) PS2 Black
CHG80-11900LLEB-U CHERRYG80-11900 Touchboard (MX Black) USB Black
CHG80-11900LLEi-U CHERRYG80-11900 Touchboard (MX Black) USB Ivory

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Keyboards
Key technology: MX Technology
Operation Characteristics: Black switch Linear (60cN)
Service life, standard key: > 50 million key operations
Inscription technology: Laser
Number of Keys: 104
Trouchpad: Optical, 1000dpi resolution, 2 keys
I/O Devices (Intergrated)
N/A
Interfaces
USB or PS2
Cable Lenght
approx. 1.75 m
Current Consumption
typ. 35 mA
Operating Environment
0°C to 50°C
Storage Environment
-20°C to 60°C
External Dimensions (WxDxH)
approx. 415 x 193 x 37 mm
Weight
1.0 Kg
Reliability
MTBF > 874,000. Hours
MCBF > 10 bill. operations
Product Compliance
C-tick, UG-VDE, CE, FCC, UL, VCCI, cURus
