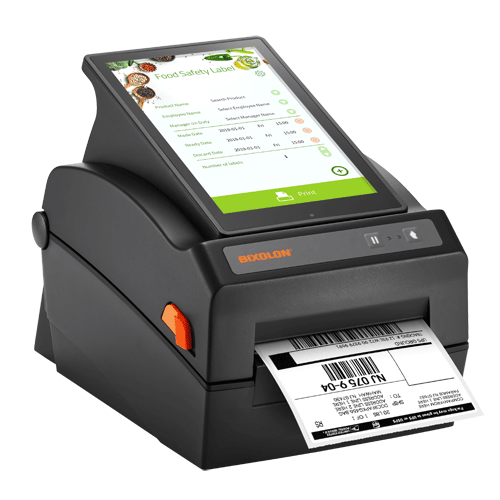

BIXOLON XQ-840 4" Desktop Direct Thermal Label Printer with 8" Android Tablet

(Product may vary from image. Rely only on description for purchasing decisions.)

The XQ-840 can be a stand-alone or fully intergated label print solution.The XQ-840 direct thermal printer’s embedded 8-inch tablet design allows you to take control of your labelling anywhere and at any time with ready out-of-box applications or easily integrate the XQ-840 into your application with a suite of development tools. The 4-inch wide, multiple media handling of the XQ-840 allows for simple switching of a range of media – receipt, tags, labels or wristbands, and in order to speed up the workflow and extend the media handling, peel dispense and cutter options are optional choices. The design of the XQ-840 lends itself to be positioned on a fixed counter, wall-mounted or used on a moveable workstation or cart-based application.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast processing and print speeds up to 6ips(152mm/sec)
  • Built-in 5 Mega Pixel camera to quickly scan barcodes
  • Compatible with BPL-Z™, BPL-E™ as well as SLCS™, BXL/POS
  • Exclusive App - Food Safety Label, Label Artist™ Mobile, BIXOLON Downloader
  • Diverse SDKs supported for building customer applications
  • XPM™, BIXOLON's web-based printer profile manager(Optional)
  • USB and Ethernet connection between tablet and printer for fast and accurate data transmission
  • 2 USB Host Ports + Ethernet + WLAN + Bluetooth interface supported for Tablet
  • Anti-theft, water and dust resistant design
  • 8-inch Android Tablet with multi-touch screen
  • Field installable Peeler and Auto Cutter
  • Adjustable Media Holders and Guides
NameSizeDownload
Brochure169kb XQ-840_brochure.pdf
Quick Setup Guide1,054kb XQ-840Series_QuickManual.pdf
User Manual2,392kb XQ-840Series_ume.pdf
Code Page Manual2,546kb Manual_LabelPrinter_Code_Pages_english_V2.00.pdf
SLCS Programming Manual1,057kb Manual_LabelPrinter_SLCS_english_V2[9].pdf
Utility Program Manual841kb Manual_Android_Bixolon_Utility_English_V1.02.pdf

Products available to purchase

 SKUVendorName
XQ840G BIXOLONXQ-840 4" Direct Thermal Label Pr wTablet Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
XQ-840: 108 mm
XQ-843: 105.7 mm
Media width
Min. 15 mm to Max. 118 mm
Media Tickness
Min. 0.06 mm to Max. 0.20 mm
Sensors
Transmissive, Reflective (adjustable), Head open
Roll Diameter
Max Ø 130 mm
Dot Pitch
XQ-840: 203 dpi
XQ-843: 300 dpi
Printing Speed (Max.)
XQ-840 Max. 152 mm/sec, 6 ips
XQ-843 Max. 100 mm/sec, 4 ips
Bar-code Type
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font
Bitmap Fonts (SLCS™ , BPL-Z, BPL-E)
Scalable Fonts (SLCS™, BPL-Z)
Unicode supported (UTF-8, UTF-16LE, TF-16BE)
Graphics Supporting user-defined fonts, graphics
Emulation
SLCS™, BPL-Z™ (ZPLII), BPL-E™ (EPL), BXL / POS (ESC / POS)
Controls
Function keys
Build in Tablet:
8 Inch IPS TFT LCD (800x1280)
Android 7.0
Camera
5MP Auto Focus
Memory
Printer
SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB
Tablet
1GB RAM
8GB Flash
Interfaces
2 USB Host Ports (for Scanner, Keyboard or Mouse)
Ethernet
WLAN 80211a/b/g/n/ac 2.4 & 5 Ghz
Bluetooth V4.2 Classic/LE
Auto Cutter
Optional (Factory option)
Driver available
Windows Driver (EURO Plus/Seagull™), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™
Android SDK
Operating Environment
Temperature: 0 to 40 °C
Humidity: 10 to 80% (no condensation)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH)
194 × 273 × 212 mm
Weight
2.20 Kg
Power Supply
Energy Star Certified
External Power Adaptor 100-240V 50/60Hz
