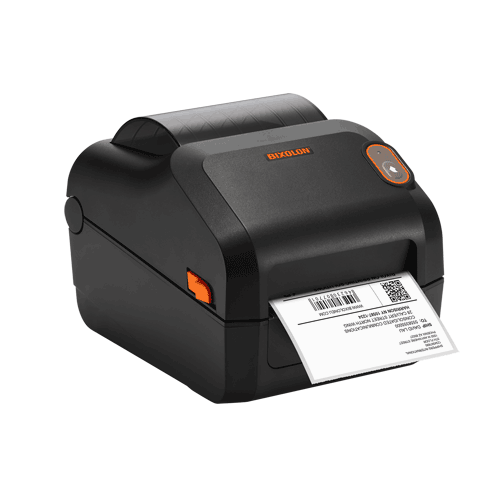

BIXOLON XD3-40 4" Direct Thermal Label Printer Blk

(Product may vary from image. Rely only on description for purchasing decisions.)
  • XD3-40UG
  • XD3-40dK
  • BIXOLON
  • XD3-40D
  • Login to view pricing and availability

4 inch Direct Thermal label printer 203dpi TPH USB Dark Grey

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 4-inch (118mm) Direct Thermal entry-level label and barcode printer
  • Quick data processing and print speed up to 5 ips (127mm/sec) to produce high quality text, graphics and barcodes
  • Interface Standard: USB, Optional USB V2.0 + Serial + Ethernet
  • Fully compatible with market-leading programming languages
  • Supporting stand-alone configuration mode by visual LED
  • Smart switch programming languages without setting the mode
  • Easy paper loading with adjustable paper guide and holder
  • Simple to setup media sensor
  • Optional Peeler and External Paper Supply
  • Simple toolless maintenance of the roller and print head
  • Compatible with label design software including BIXOLON’s Label Artist™-II and Seagull’s BarTender® UltraLite
  • Energy Star Certified
NameSizeDownload
brochure153kb xd3-40d_brochure.pdf
Quick Start up Guide1,038kb XD3-40d_quick_ume.pdf
User Manual2,004kb XD3-40d_ume.pdf
Programming Manual1,091kb BXL_LabelTX_DX_DL_XD_Programming_manual.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
104 mm
Media width
Min. 15 mm to Max. 118 mm
Media Tickness
Min. 0.06 mm to Max. 0.20 mm
Sensors
Transmissive, Reflective (adjustable), Head open
Roll Diameter
Max Ø 127 mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Max. 127 mm/sec, 5 ips
Bar-code Type
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font
Character Sets:
•10 SLCS Resident Bitmap Fonts
• One SLCS Resident Scalable Font
•16 BPL-Z™ Resident Bitmap Fonts
• One BPL-Z™ Resident Bitmap Font
• 5 BPL-E™ Resident Bitmap Fonts
• 23 Code Page
• Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation
SLCS, BPL-Z™, BPL-E™
Controls
Function
CPU
NA
Memory
SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB
Interfaces
Standard USB
or USB, Serial & Ethernet (10/100)
Auto Cutter
NA
Driver available
Windows Driver (EURO Plus/Seagull™), OPOS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™II, Bartender Ultralite
Windows SDK &LINUX SDK
Operating Environment
Temperature: 0 to 40 °C
Humidity: 10 to 80% (no condensation)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH)
181 × 222 × 168 mm
Weight
1.7 Kg
Power Supply
External Power Supply 100-240V 50/60Hz
EnergyStar Certified
