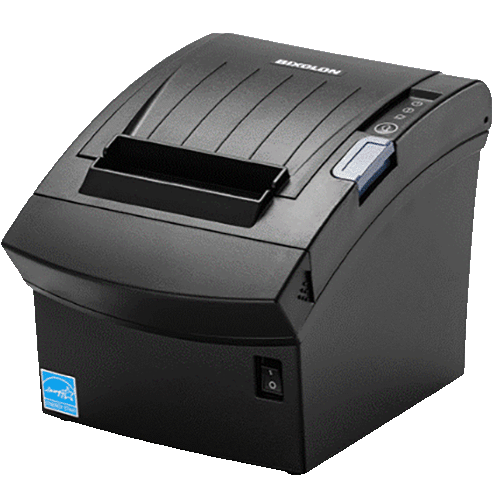

BIXOLON SRP350 V with USB I F

(Product may vary from image. Rely only on description for purchasing decisions.)
  • SRP350VUiG
  • SRP350VK
  • BIXOLON
  • SRP350VG
    • Login to view pricing and availability

BIXOLON SRP-350plusV Thermal POS Printer with USB only I/F Cables not included.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast printing speed of up to300mm per second
  • - Optimized mechanical components and software to enable fast and stable printing
  • - IEnergy Star certfied
  • - Larger memory capacity(16Kbytes)
  • - Anti-jam guide
  • -Built-in USB ( Optional Serial, Parallel or Ethernet )
  • -Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal
  • -180 or 203 dpi options
  • -Customer oriented software tools provided
  • 2D barcode printing support
  • - PDF417
  • - QR Code
  • - compatible with market-leading programming languages with an extensive range of drivers and SDKs.
  • Available in Dark Grey & White (special Order)
  • Only Auto cutter version available in Australia
NameSizeDownload
User Manual2,419kb Manual_User_SRP-350352V_ENG_V1.01.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
150 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 7 page
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
4 KBytes
NV Memory
16 MBit
Sensors
Paper End Sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB or
USB + RS232C or
RS232C or
Parallel (IEEE 1284) or
Ethernet
Driver available
Windows 95/98/Me/2000/NT/XP/2003 Server Driver, OPOS Driver
Software Utilities
Firmware/NV Image download
Power Supply
Input: AC100 ~240V DC 24V, 2.3A
Power Consumption
60W
External Dimensions (WxDxH)
145 x 195 x 146 mm
Weight
Approx. 1.67 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-10-55°C
10-80% RH None condensing
Reliability
Printer: 37 million Lines
Head: 100 Km
Auto Cutter: 1.5 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
