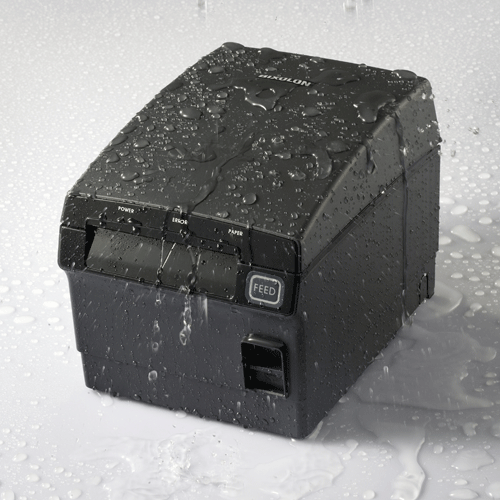

BIXOLON SRP-F310 Thermal POS Printer *** Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON SRP-F310 supports a printing speed of 270 mm/sec, 180 dpi / 203 dpi resolution, and is a waterproof front exit printer that acquired IPX2 Class.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Thermal POS Printer
  • Liquid-Barrier™ front exit printer(IPX2 Class Certified)
  • All in one plus™ Interfaces (Ethernet USB dongle(WLAN)USB 2.0 On Board/Serial or Parallel)
  • Ethernet ,USB 2.0, USB host port for WLAN dongle on board
  • Fastest BIXOLON receipt printer -270mm/sec
  • Larger paper roll diameter up to 105mm
  • BIXOLON Interactive Linker(Option) ->Programmable choice using 4 buttons (Receipt on demand printing/Cash drawer open/Printing stop/Signal back to host POS)
  • Built-in Power Supply
  • User-convenience Design/Ergonomic design front control panel
  • Full featured BIXOLON POS Software Package (PSP)
  • Available in Dark Grey & White
  • Only Auto cutter version available in Australia
NameSizeDownload
Brochure255kb srpf310_brochure.pdf
User Manual731kb srp-f310312_User_manual.pdf
Windows Driver47,154kb BIX_SRPF310PSPInstallerV1.0.0b(ENG).zip
Windows Driver47,675kb BIX_SRPF310PSPInstallerV1.0.1.zip

Products available to purchase

 SKUVendorName
BIL100G BIXOLONInteractive Linker Keyboard 4 Buttons Dark Grey
RWD100 BIXOLONWLAN Dongle for SRPF310
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
270 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 33 page (1 Space Page)
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 83 ± 0.5mm
Paper Roll Diameter
Max Ø 105 mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
4 KBytes
NV Memory
256 KBytes (Mono)
Sensors
Paper End Sensor , Paper near end sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
USB port for Wifi Dongle
Interfaces
USB V2.0 & Ethernet or
USB V2.0, Ethernet & RS232C
Wifi with Dongle in USB Host Port
Driver available
Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver
Software Utilities
Firmware/NV Image download
Utility Software Package
Power Supply
Input: AC100 ~240V DC 24V, 2.5A
Power Consumption
External Dimensions (WxDxH)
154 x 203 x 148 mm
Weight
Approx. 2.21 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-10-55°C
10-80% RH None condensing
Reliability
Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
