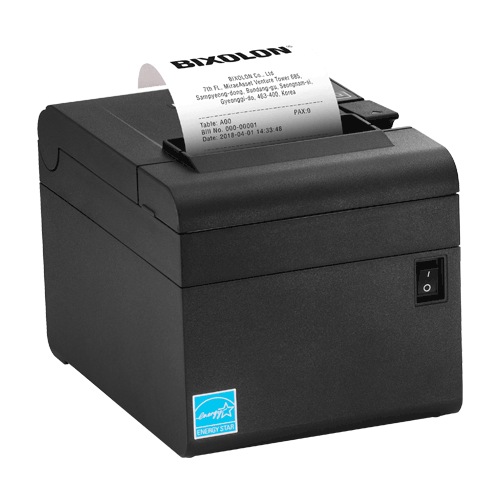

BIXOLON SRP-E300 Thermal POS Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

The Bixolon SRP-E300 is an a cost effective Thermal POS Printer Solution.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal POS Printer
  • All in one Plus ™ Interface, USB V2.0 FS + Ethernet + Serial
  • Paper saving mode, reducing the length of a receipt up to 25%
  • Energy star certified
  • Printing speed up to 220 mm/sec
  • High reliability mechanism : 150 km TPH & 1.5 Million cuts Auto Cutter
  • Stand-alone or space-saving wall-mount use
  • 10% smaller than SRP-330II
NameSizeDownload
Brochure157kb SRP-E300_EN_brochure.pdf
User Manual1,294kb srp-e300_e302_ume_ver_1_00.pdf
Windows Driver12,601kb BIX_srp-e300_e302_windows_driver_v1.0.1.zip

Products available to purchase

 SKUVendorName
SRPE300UREG BIXOLONSRP-E300 Thermal POS Printer USB RS232 Eth Dark G
SRPE300UREG410 BIXOLONSRP-E300 POS Printer & CD410 Cash Drawer Bundle
CAB-D9MD9FExt GOODSON2m DB9M to DB9F straight Ext
CAB-ETH02 GOODSONPatchlead RJ45 Ethernet 2m Gry
TEP8080PB GOODSONStandard Thermal 80x80 Paper rolls 24 per box

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SRP330BIXOLON SRP-330 Thermal POS Printer
TMT20TM-T20 Series Thermal POS Printer
TMT82TM-T82 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
Dot Pitch
180 dpi
203 dpi (Special Order)
Printing Speed (Max.)
220 mm/Sec
Number of Columns
(180dpi) 80 mm Paper: Font A - 42 columns, Font B - 56 columns, Font C - 56 columns, KKOR, CHN, JPN - 21
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Character Table/Code Pages
Alphanumeric: 95 / Expanded Graphics 128x35 page, International: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code, Datamatrix
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.62 ~ 0.075 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Yes
Indicators/Controls
Emulation
BXL/POS
Print Buffer
4KBytes
NV Memory
768 KBytes (Mono)
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB V2.0 FS, RS232 & Ethernet
Driver available
Windows Driver/OPOS/JPOS/ CUPS (Linux/Mac)/Virtual COM USB Driver
Software Utilities
Virtual COM USB and Ethernet Driver
Firmware/NV Image download
iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK
Chrome Plugin, Cordova Plugin
Power Supply
External Power Adapter AC100 ~240V
Output DC 24V
EnergyStar Certified
Power Consumption
Energy Star Certified
External Dimensions (WxDxH)
132 x 182.4 x 128.5 mm
Operating Environment
0-40°C, 10-80% RH
Weight
Approx. 1.23 Kg
Storage Environment
-20-60°C, 10-90% RH
Reliability
Printer: 60 million Lines
Head: 150 Km
Auto Cutter: 1.5 Million cuts
Using Specified Paper
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
