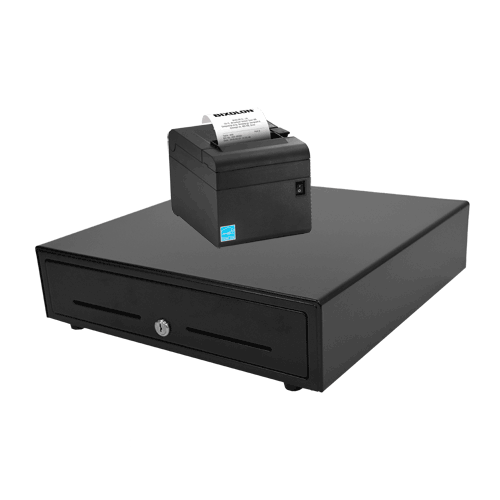

BIXOLON SRP-E300 POS Printer & CD410 Cash Drawer Bundle

(Product may vary from image. Rely only on description for purchasing decisions.)
  • SRPE300UREG410
  • SRPE300UREG410
  • BIXOLON
  • SRPE300
    • Login to view pricing and availability

SRP-E300 POS Printer & CD410BL Cash Drawer Bundle1 x SRPE300UREG1 x CD410BL

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal POS Printer
  • All in one Plus ™ Interface, USB V2.0 FS + Ethernet + Serial
  • Paper saving mode, reducing the length of a receipt up to 25%
  • Energy star certified
  • Printing speed up to 220 mm/sec
  • High reliability mechanism : 150 km TPH & 1.5 Million cuts Auto Cutter
  • Stand-alone or space-saving wall-mount use
  • 10% smaller than SRP-330II
NameSizeDownload
Brochure157kb SRP-E300_EN_brochure.pdf
User Manual1,294kb srp-e300_e302_ume_ver_1_00.pdf
Windows Driver12,601kb BIX_srp-e300_e302_windows_driver_v1.0.1.zip

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SRP330BIXOLON SRP-330 Thermal POS Printer
TMT20TM-T20 Series Thermal POS Printer
TMT82TM-T82 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
Dot Pitch
180 dpi
203 dpi (Special Order)
Printing Speed (Max.)
220 mm/Sec
Number of Columns
(180dpi) 80 mm Paper: Font A - 42 columns, Font B - 56 columns, Font C - 56 columns, KKOR, CHN, JPN - 21
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Character Table/Code Pages
Alphanumeric: 95 / Expanded Graphics 128x35 page, International: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code, Datamatrix
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
0.62 ~ 0.075 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Yes
Indicators/Controls
Emulation
BXL/POS
Print Buffer
4KBytes
NV Memory
768 KBytes (Mono)
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB V2.0 FS, RS232 & Ethernet
Driver available
Windows Driver/OPOS/JPOS/ CUPS (Linux/Mac)/Virtual COM USB Driver
Software Utilities
Virtual COM USB and Ethernet Driver
Firmware/NV Image download
iOS SDK, Android SDK, Windows SDK, Linux SDK, Xamarin SDK
Chrome Plugin, Cordova Plugin
Power Supply
External Power Adapter AC100 ~240V
Output DC 24V
EnergyStar Certified
Power Consumption
Energy Star Certified
External Dimensions (WxDxH)
132 x 182.4 x 128.5 mm
Operating Environment
0-40°C, 10-80% RH
Weight
Approx. 1.23 Kg
Storage Environment
-20-60°C, 10-90% RH
Reliability
Printer: 60 million Lines
Head: 150 Km
Auto Cutter: 1.5 Million cuts
Using Specified Paper
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
