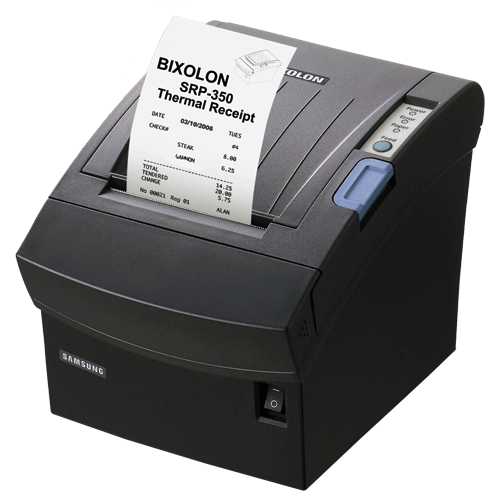

BIXOLON SRP-350III Thermal POS Printer Thermal POS Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

The SRP-350III is the next generation in the SRP-350 model range. The BIXOLON SRP-350III is a 3 inch thermal receipt printer. The biggest benefit of the SRP-350III is improved printing speed, not only Text printing speed, but also Image printing speed is now up to 250mm/sec. Various drivers including a smart Window driver make the BIXOLON SRP-350III thermal receipt printer easy to configure in many applications. The SRP-350III with its Quicker speed has even better reliability, which you would expect from a leading manufacturer. The SRP-350III thermal receipt printer offers simplicity for operator with Easy-paper-loading

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Compact Thermal Receipt Printer
  • 250 mm/Sec High Speed Printing
  • Now standard with USB Interface
  • Various interface cards available:
  • RS-232C, IEEE Parallel or 10/100 Ethernet
  • ESC/POS compatible
  • Page mode printing
  • Easy to use:
  • - Drop in Paper loading
  • - Eliminates Paper Jams
  • 2D Barcode Printing:
  • - PDF417
  • - QR Code
  • SRP-350III PSP (POS Software Package) Launcher Available
  • - Intelligent Interface Auto-installer
  • - Reverse Printing (Rotation)
  • - Margin Crop
  • - Text & Image Macro
  • NV Memory for Bit map Data storage
  • Full or Partial Cut
  • Drivers available for Windows, OPOS, JPOS, Mac & Linux
  • Available in Dark Grey & White (Special Order)
NameSizeDownload
Brochure248kb srp350iii_brochure.pdf
User Manual1,061kb srp350_352iii_user_english_rev_1_03.pdf
Windows Driver17,858kb BIX_srp-350iii_windows_driver_v2.0.4.zip

Products available to purchase

 SKUVendorName
SRP350IIIUEBTGi BIXOLONSRP350 Plus III USB Ethernet Bluetooth MFI
SRP350IIIUiG BIXOLONSRP350III Dark Grey Std USB no extra I F
RIF350PIII BIXOLONParallel Interface Board for SRP350III 350PLUSIII
RIF350RIII BIXOLONRS232 Interface for SRP350PlusIII 350III SRPF310II
RWM350 BIXOLONWall Mount Bracket for SRP350 275
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
TEP8080PB GOODSONStandard Thermal 80x80 Paper rolls 24 per box
TEP8080PBL48 GOODSONStandard Thermal 80x80 Paper Rolls 48 per Box
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SRP350BIXOLON SRP350 Thermal POS Printer
TMT88TM-T88 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
250 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Korean: 21 columns
Chinese: 21 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x37 page
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
4 KBytes
NV Memory
256 KBytes
Sensors
Paper End Sensor , Paper near end sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
StandardUSB V2.0 on Board plus
RS232C or
Parallel (IEEE 1284 or
Ethernet
Driver available
Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver
Software Utilities
Firmware/NV Image download
Utility Software Package
Power Supply
Input: AC100 ~240V DC 24V, 2.5A
Power Consumption
Max. 60W
External Dimensions (WxDxH)
145 x 203 x 146 mm
Weight
Approx. 1.67 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-10-55°C
10-80% RH None condensing
Reliability
Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
