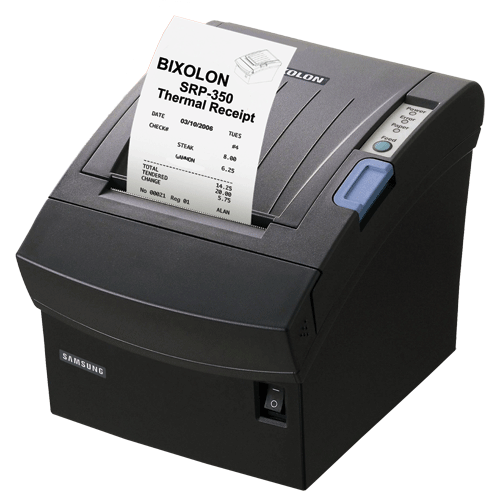

BIXOLON SRP-350II Thermal POS Printer **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The SRP-350II is the successor of the best selling model SRP-350. The BIXOLON SRP-350II is a 3 inch thermal receipt printer. The biggest benefit of the SRP-350II is improved printing speed, not only Text printing speed, but also Image printing speed is now up to 200mm/sec. Various drivers including a smart Window driver make the BIXOLON SRP-350II thermal receipt printer easy to configure in many applications. The SRP-350II with its Quicker speed has even better reliability, which you would expect from a leading manufacturer. The SRP-350II thermal receipt printer offers simplicity for operator with Easy-paper-loading

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast printing speed up to 200mm per second
  • Easy drop in paper loading (Simple paper jam removal)
  • Various interface cards (Serial / Parallel / USB, Ethernet, Powered USB)
  • USB 2.0 Support
  • 2D barcode printing (PDF417, QR Code)
  • SRP-350II PSP (POS Software Package) Launcher Available
  • - Intelligent Interface Auto-installer
  • - Reverse Printing (Rotation)
  • - Margin Crop
  • - Text & Image Macro
  • User-friendly software tools
  • - Virtual Memory Switch Manager (VMSM)
  • - NV image download
  • - Full version of drivers supported
  • Windows Driver, OPOS Driver, JPOS Driver, Linux Cups Driver, Mac Driver
  • Value-added options available
  • - Melodist with 15 different melodies
  • - SMPS cover for built-in power supply
  • - Vertical stand for front exit face up
  • - Wall mount bracket for limited space
NameSizeDownload
Brochure283kb srp350II_brochure.pdf
User Manual683kb SRP350II_user_manual.PDF

Products available to purchase

 SKUVendorName
RIF350PlusP BIXOLONParallel interface board for 275II
RSC350II BIXOLONSplash Cover for SRP350II & SRP350PLUS
RWM350 BIXOLONWall Mount Bracket for SRP350 275
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
200 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Korean: 21 columns
Chinese: 21 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x37 page
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
12 KBytes
NV Memory
256 KBytes (Mono)
128 KBytes (Colour)
Sensors
Paper End Sensor , Paper near end sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB V2.0 or
RS232C or
Parallel (IEEE 1284 or
Ethernet
Driver available
Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver
Software Utilities
Firmware/NV Image download
Utility Software Package
Power Supply
Input: AC100 ~240V DC 24V, 2.5A
Power Consumption
Max. 60W
External Dimensions (WxDxH)
145 x 203 x 146 mm
Weight
Approx. 1.67 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-10-55°C
10-80% RH None condensing
Reliability
Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
