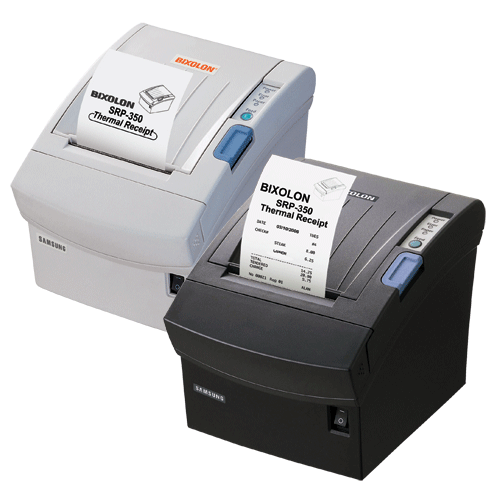

BIXOLON SRP-350 Thermal POS Printer **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

The SRP-350 is the most popular direct thermal printer of the BIXOLON Samsung mini printer line-up throughout the world. This printer is fully packed with features and performance that is unmatched in a receipt printer. The SRP-350 is an ideal single station thermal receipt printer for Retail and Hospitality applications and offers the same ultra-reliable quality you have come to expect from BIXOLON.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Compact Thermal Receipt Printer
  • 150 mm/Sec High Speed Printing
  • Now standard without interface!
  • Various interface cards available: RS-232C, IEEE Parallel, RS-485, USB, 10/100 Ethernet or Bluetooth.
  • ESC/POS compatible
  • Page mode printing
  • Easy to use: Drop in Paper loading, Eliminates Paper Jams
  • NV Memory for Bit map Data storage
  • Full or Partial Cut
  • Barcode Printing
  • Easy customization by software program
  • Available in Dark Grey & White
NameSizeDownload
Brochure842kb srp350_brochure.pdf
User Manual658kb SRP350_user_manual.PDF
Windows Driver11,000kb BIX_SRP-350_V3.1.5E.zip

Products available to purchase

 SKUVendorName
RIF350P BIXOLONParallel interface board for 270
RIF350U BIXOLONUSB interface board for 270
RWM350 BIXOLONWall Mount Bracket for SRP350 275
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
150 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 7 page
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Guillotine, Partial cut or Full cut
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
4 KBytes
NV Memory
16 MBit
Sensors
Paper End Sensor, Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB or
USB + RS232C or
RS232C or
Parallel (IEEE 1284) or
Ethernet
Driver available
Windows 95/98/Me/2000/NT/XP/2003 Server Driver, OPOS Driver
Software Utilities
Firmware/NV Image download
Power Supply
Input: AC100 ~240V DC 24V, 2.3A
Power Consumption
60W
External Dimensions (WxDxH)
145 x 195 x 146 mm
Weight
Approx. 1.67 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-10-55°C
10-80% RH None condensing
Reliability
Printer: 37 million Lines
Head: 100 Km
Auto Cutter: 1.5 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
