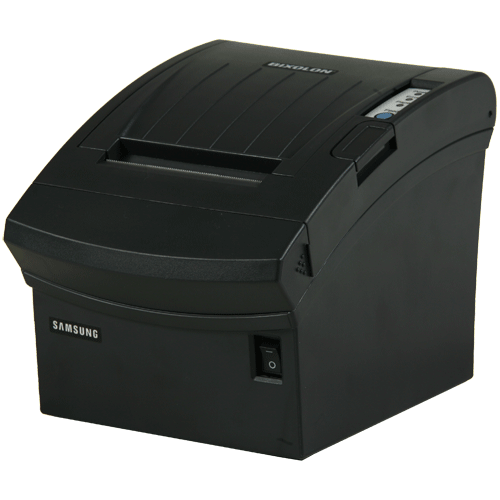

BIXOLON SRP-350 PlusIII Thermal POS Printer

(Product may vary from image. Rely only on description for purchasing decisions.)

The BIXOLON SRP-350plusIII is the next generation in the SRP-350 Plus range, a 3 inch thermal receipt printer fully featured with improved printing speed up to 300mm/sec. Easy-to-use Windows driver and other various drivers make BIXOLON SRP-350plusII even more flexible to connect to many POS Applications in the market. The SRP-350 Plus III also comes with cost saving paper reduction function and standard with USB 2.0 and Ethernet Interface.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast printing speed of up to 300mm per second
  • High speed USB 2.0 & Ethernet Interface standard onboard
  • Optional RS232, Parallel, Wifi and Bluetooth interfaces available
  • Compatible with smart devices including iOS (MFi optional), Android & Windows RT 8.1
  • Long lasting Auto-cutter up to 1.8 million cuts with easy paper-jam removal
  • Two colour printing (on special Paper)
  • Cost saving Paper reduction function (also for Barcode)
  • Customer oriented software tools provided
  • 2D barcode printing support (PDF417, Datamatrix & QR code)
  • Available in Dark Grey & White (special Order)
  • Only Auto cutter version available in Australia
NameSizeDownload
User Manual1,109kb srp-350_352plusiii_user_english_rev_1_03.pdf
Windows Driver12,556kb BIX_srp-350plusiii_windows_driver_v1.3.0.zip

Products available to purchase

 SKUVendorName
SRP350PLUSIIIUEG BIXOLONSRP-350 Plus III with USB & Eth interface Dark Gr
RIF350PIII BIXOLONParallel Interface Board for SRP350III 350PLUSIII
RIF350RIII BIXOLONRS232 Interface for SRP350PlusIII 350III SRPF310II
RWM350 BIXOLONWall Mount Bracket for SRP350 275
RIF350WIII BIXOLONWifi Interface for SRP350Plus III
CAB-PR9F25M GOODSONCable RS232 DB9F to Printer
CAB-PAR1.8 GOODSONParallel Cable 1.8m
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
T8080 GOODSONT8080 Premium Thermal rolls 80x80 (24 per Box)
T8080L48 GOODSONPremium Thermal rolls 80x80 48 rolls per box
T5750 GOODSONThermal 57 X 50 Paper Rolls Bx50
T5770 GOODSONThermal 57 X 70 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
SRP350PlusBIXOLON SRP350 Plus Thermal POS Printer
TMT88TM-T88 Series Thermal POS Printer

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi (7dots/mm)
Printing Speed (Max.)
up to 300 mm/Sec
Number of Columns
80 mm Paper:
Font A - 42 columns
Font B - 56 columns
Font C - 56 columns
Korean: 21 columns
Chinese: 21 columns
Japan: 21 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Korean: 24 x 24
Chinese: 24 x 24
Japanese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128 x 37 page
International Character: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code39, Code128, CODABAR, Code93, PDF417, QR Code & DataMatrix
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 83.0mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Indicators/Controls
Power Light, Error Light, Paper Out Light
Buzzer
Emulation
ESC/POS
Print Buffer
4 KBytes
NV Memory
768 KBytes (Mono)
Sensors
Paper End Sensor , Paper near end sensor, Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
Standard USB V2.0 & Ethernet
Optional extra:
RS232
Parallel
Powered USB
Wifi (802.11 b/g/n)
Bluetooth (Class 1, 100m, MFi certified)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver, Mac Driver, Virtual COM USB/Ethernet Driver
Software Utilities
Firmware/NV Image download
Utility Software Package
SDK available: iOS, Android, Windows
Power Supply
External Power Adapter
Input: AC 100~240V output: DC 24V
Power Consumption
EnergyStar certified
External Dimensions (WxDxH)
144 x 204 x 148 mm
Weight
Approx. 1.56 Kg
Operating Environment
0-45°C
10-80% RH None condensing
Storage Environment
-20-60°C
10-90% RH None condensing
Reliability
Printer: 70 million Lines
Head: 150 Km
Auto Cutter: 1.8 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
