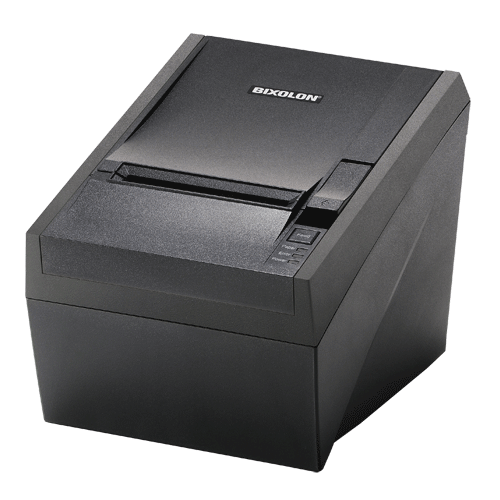

BIXOLON SRP-330 Thermal POS Printer Series ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

With the SRP-330 Bixolon has brought a affordable and reliable 3 inch Thermal POS Printer Solution.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal POS Printer.
  • Stand Alone or Wall mount
  • Dual Interface
  • 57 or 80 mm Paper choice
  • Fast printing speed up to 200 mm/sec
NameSizeDownload
Brochure251kb srp330_brochure.pdf
User Manual897kb srp330_ume.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
58mm Paper: 48mm
Dot Pitch
180 dpi
Printing Speed (Max.)
200 mm/Sec
Number of Columns
80 mm Paper: Font A - 42 columns, Font B - 56 columns, Font C - 56 columns
Character Size
Font A:1.50 ×3.00 mm (12 x 24 Dots)
Font B:1.13 ×3.00 mm (9 x 17 Dots)
Font C: 1.00 x 2.0 mm (9 x 24 Dots)
Character Table/Code Pages
Alphanumeric: 95 / Expanded Graphics 128x37 page, International: 32
Bar-code Type
UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR, Code 93, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll
Paper Width
80 ± 0.5mm or 58 ± 0.5mm
Paper Roll Diameter
Max Ø 80.0mm
Paper Thickness
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Indicators/Controls
Emulation
BXL/POS
Print Buffer
4KBytes
NV Memory
256 KBytes (Mono)
Sensors
Paper End Sensor , Rear Cover Open Sensor
Drawer Port
1 port (opens 2 drawers, special cable is needed to open 2 drawers)
External Device Port
N/A
Interfaces
USB V2.0 FS & RS232 or
USB V2.0 FS & Parallel or
USB V2.0 FS & Ethernet
Driver available
Windows XP/VISTA/7 32 bit & 64Bit/Server 2003/2008/OPOS/JPOS/ Linux CUPS/ Mac Driver
Software Utilities
Firmware/NV Image download
Power Supply
Input: AC100 ~240V DC 24V, 2.5A
Power Consumption
External Dimensions (WxDxH)
153 x 195 x 145 mm
Operating Environment
0-45°C, 10-80% RH
Weight
Approx. 0.28 Kg
Storage Environment
-20-60°C, 10-80% RH
Reliability
Printer: 60 million Lines
Head: 150 Km
Auto Cutter: 1.5 Million cuts
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
