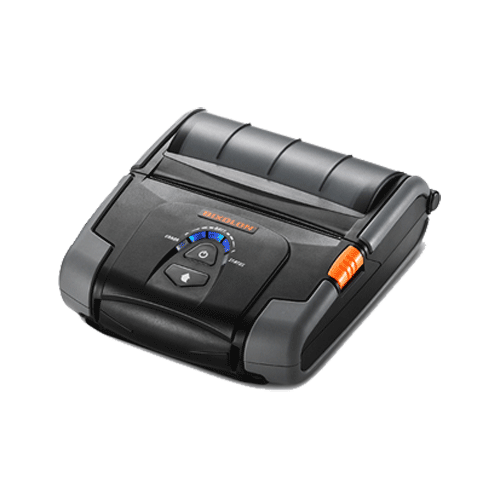

BIXOLON SPP-R400 4" Portable Thermal Printer Series **Obsolete**

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON Mobile Printer SPP-R400 is a robust 4" Portable printer. A prudent choice for any mobile receipt printing application where you need fast, on-demand printing with speeds up to 80mm per second

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 4" Portable Thermal Label Printer
  • Compatible with mobile devices including iPhone, iPad (Optional MFi certified) and Android
  • Versatile connectivity (WLAN, Bluetooth, etc.)
  • One touch cover open and simple drop-in paper loading
  • Handy yet robust design
  • Water and dust resistant (IP54 with protective case)
  • Long-lasting battery life
  • Optional Integrated Card Reader (MSR)
  • Linerless label printing (optional)
  • Easily switch from receipt to label printing
  • Low-temp (-15°C) printing with an integrated temperature sensor
  • Faster printing speeds of up to 80 mm/sec (Receipt)
  • Enhanced printing of fonts, graphics, and barcode symbologies
Brochure244kb sppr400_brochure.pdf
User Manual1,606kb spp-r400_ume_rev_1_02.pdf

Products available to purchase

CAB-SPP2IIR BIXOLONRS232 Cable for the SPPR200II 400 300
CAB-SPP2IIU BIXOLONUSB Cable for the SPPR200II 400 300

All Vendor Sku's for this Products

This product is equivalent to the following products

No Products to Display

Parts documents

Parts layout details

Printing Method
Line Thermal Dot Printing
Printing Width
up to 104mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 80 mm/Sec (Receipt)
Up to 50 mm/Sec (Linerless)
12.5% pattern
Number of Columns
Font A - 69
Font B - 92
Font C - 92
Korean: 34 columns
Chinese: 34 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Korean: 24 x 24
Chinese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
1D: Coda Bar, Cpode 39, Code 93, Code 128, EAN-8, EAN-13,ITF,UPC-A, UPC-C
2D: Data Matrix, MaxiCode, PDF417 & QR Code
Line Spacing
Paper feed method
Paper Type
Thermal Paper Roll or Labels
Paper Width
Paper Roll Diameter
Max Ø 57 mm
Paper Thickness
0.07+/- 0.003 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
Power and Battery Charge Indicator, paper feed button
64Mbit SDRAM
32 Mbit FlashROM
Paper End Sensor: Reflective Sensor
Paper Cover open
Bluetooth V3.0 + EDR
WLAN 802.11 b/g - WEP40/104, WPA1/2 (PSK, EAP)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
Software Utilities
iOS SDK, Android SDk, Windows SDK, Symbian SDK
Rechargeable 7.4V Li-ion 2600mAh
Charging time: up to 4 Hrs
Factory Option 3 Track DUKPT, T-DES (optional)
shoulder strap
Battery Cradle
Battery Charger
Vehicle Charger
External Dimensions (WxDxH)
147 x 171.4 x 66.7 mm
Including Battery Approx. 697 g
Including MSR & Battery Approx. 712 g
Operating Environment
10-80% RH None condensing
Storage Environment
10-80% RH None condensing
Environmental Sealing
IP54 (With Protective case)
Mechanical Shock
Drop Spec 1.5m
Printhead 50 km
Battery: Rechargeable up to 500 times
EMC/Safety Standards
UL, FCC Class A, TUV-GS, CE 0560, CE, C-Tick
