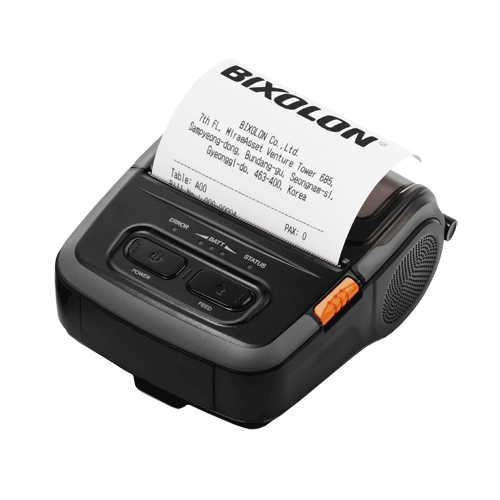

BIXOLON SPP-R310 3" Portable Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON Mobile Printer SPP-R310 is a robust 3" Portable printer. A prudent choice for any mobile receipt printing application where you need fast, on-demand printing with speeds up to 100mm per second.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast printing speed up to 100 mm/sec (Receipt)
  • Designed for the receipt and label printing
  • Optional linerless label printing
  • Supports black mark reflective sensor and transmissive gap sensor (Optional Positioning)
  • Easy to grip: 30% lighter and 26% slimmer than SPP-R300
  • One touch cover open and easy paper loading
  • Wireless and wired connectivity options including Bluetooth, WiFi, USB and Serial
  • Supporting Easy Bluetooth Pairing™ via embedded NFC tag enabling auto pairing
  • IP54 (Printer only) water and dust proof
  • 1.8 m / 6 ft. drop rate
  • Long-lasting battery life (24-hour stand by time)
NameSizeDownload
Brochure391kb spp-r310_brochure.pdf
User Manual3,113kb spp-r310_ume_rev_1_00.pdf

Products available to purchase

 SKUVendorName
SPPR310iBG BIXOLONSPP-R310 Bluetooth Mob Printer no MSR iOS android

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 100 mm/Sec (Receipt)
Up to 80 mm/Sec (Linerless)
12.5% pattern
Number of Columns
80 mm Paper:
Font A - 48 columns
Font B - 64 columns
Font C - 64 columns
Korean: 24 columns
Chinese: 24 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Korean: 24 x 24
Chinese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR & Code 93
2D: Aztec, Data Matrix, GS1 Databar, MaxiCode, PDF417 & QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels or B-Linerless Paper roll
Paper Width
80mm
Paper Roll Diameter
Max Ø 50 mm
Paper Thickness
0.07+/- 0.003 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge Indicator
Emulation
BXL/POS
Memory
64Mbit SDRAM
32 Mbit FlashROM
Sensors
Paper End Sensor
Paper Cover open
Black Mark (optional Positioning)
Optional Gap Sensor
Interfaces
StandardUSB V2.0 FS and Serial on Board
Factory Option:
Bluetooth V3.0 + EDR
WLAN 802.11 b/g/n - WEP40/104, WPA1/2 (PSK, EAP)
Driver available
Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
Software Utilities
iOS SDK, Android SDK, Windows SDK
Battery
Rechargeable 7.4V Li-ion 2600mAh
Charging time: up to 4 Hrs
MSR
Factory Option 3 Track
Optional Certifications: DUKPT, T-DES
External Dimensions (WxDxH)
105 x 126 x 58 mm
Weight
Including Battery Approx. 385 g
Including MSR & Battery Approx. 405 g
Paper not included (approx +133g)
Operating Environment
-15-50°C
10-80% RH None condensing
Storage Environment
-30-70°C
10-80% RH None condensing
Environmental Sealing
IP54 (Printer Only)
Mechanical Shock
Drop Spec 1.8m
Reliability
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
