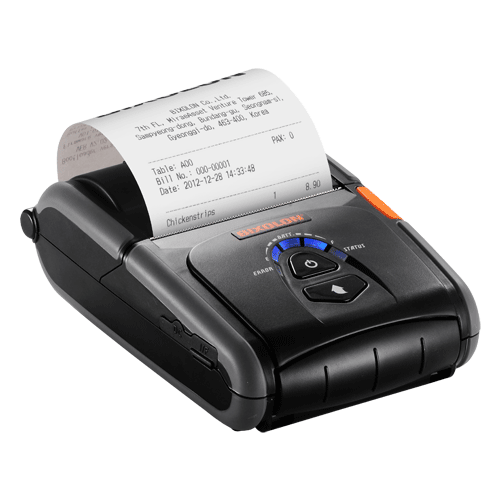

BIXOLON SPP-R300 3" Portable Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON Mobile Printer SPP-R300 is a robust 3" Portable printer. A prudent choice for any mobile receipt printing application where you need fast, on-demand printing with speeds up to 100mm per second

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 3" Portable Thermal Label Printer
  • Compatible with mobile devices including iPhone, iPad (Optional MFi certified) and Android
  • Versatile connectivity (WLAN, Bluetooth, etc.)
  • One touch cover open and simple drop-in paper loading
  • Handy yet robust design
  • Water and dust resistant (IP54 with protective case)
  • Long-lasting battery life
  • Optional Integrated Card Reader (MSR)
  • Linerless label printing (optional)
  • Easily switch from receipt to label printing
  • Low-temp (-15°C) printing with an integrated temperature sensor
  • Faster printing speeds of up to 100 mm/sec (Receipt)
  • Enhanced printing of fonts, graphics, and barcode symbologies
NameSizeDownload
Brochure212kb spp-r300_brochure.pdf
User Manual1,573kb spp-r300_ume_rev_1_02(mfi).pdf

Products available to purchase

 SKUVendorName
CAB-SPP2IIR BIXOLONRS232 Cable for the SPPR200II 400 300
CAB-SPP2IIU BIXOLONUSB Cable for the SPPR200II 400 300
T8045 GOODSONTherrmal Paper Roll 80x45x12

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
80mm Paper: 72mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 100 mm/Sec (Receipt)
Up to 80 mm/Sec (Linerless)
12.5% pattern
Number of Columns
80 mm Paper:
Font A - 48 columns
Font B - 64 columns
Font C - 64 columns
Korean: 24 columns
Chinese: 24 columns
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Korean: 24 x 24
Chinese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
1D: UPC-A/E, EAN-13/8, ITF, Code 39, Code 128, CODABAR & Code 93
2D: Data Matrix, MaxiCode, PDF417 & QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels
Paper Width
80 ± 0.5mm
Paper Roll Diameter
Max Ø 50 mm
Paper Thickness
0.07+/- 0.003 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge Indicator
Emulation
BXL/POS
Memory
64Mbit SDRAM
32 Mbit FlashROM
Sensors
Paper End Sensor: Reflective Sensor
Paper Cover open
Interfaces
StandardUSB V1.1 FS and Serial on Board
Factory Option:
Bluetooth V3.0 + EDR
WLAN 802.11 b/g - WEP40/104, WPA1/2 (PSK, EAP)
Driver available
Smart Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
Software Utilities
iOS SDK, Android SDk, Windows SDK, Symbian SDK
Battery
Rechargeable 7.4V Li-ion 2600mAh
Charging time: up to 4 Hrs
MSR
Factory Option 3 Track
Optional Certifications: DUKPT, T-DES
External Dimensions (WxDxH)
110 x 162 x 58.3 mm
Weight
Including Battery Approx. 550 g
Including MSR & Battery Approx. 565 g
Operating Environment
-15-50°C
10-80% RH None condensing
Storage Environment
-30-70°C
10-80% RH None condensing
Environmental Sealing
IP54 (With Protective case)
Mechanical Shock
Drop Spec 1.5m
Reliability
Printhead 50 km
Battery: Rechargeable up to 300 times
EMC/Safety Standards
UL, C-UL, FCC Class A, TUV-GS, CE, C-Tick
