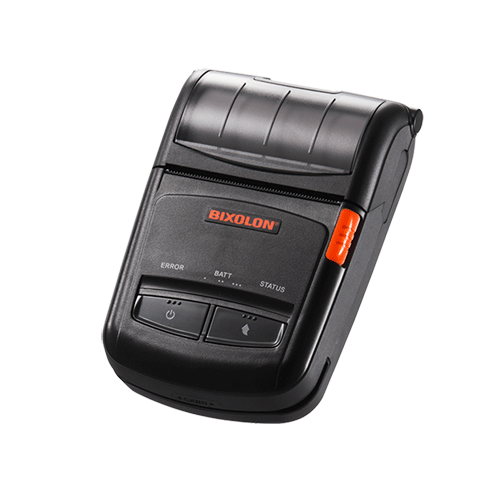

BIXOLON SPP-R210 2" Portable Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON's SPP-R210 is its most compact 2-inch (58mm) mobile receipt printer. A clear, precise design offering easy drop-in receipt loading and single touch opening. The small form factor is optimised for your Mobile workforce with ruggedness up to IP54 and a design to resist multiple drops. Offering wired and wireless: WLAN and MFi certified Bluetooth, connectivity, the SPP-R210 can be controlled via fixed or mobile devices - handheld, tablet or terminal, and its long-lasting battery will ensure your workforce maintain uptime. Offering integrated magnetic and smart card reader options, the printer is capable of handling your transactional routine.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • 58mm Mobile Thermal Printer
  • Ideal for using smart devices including iPhone,iPad, and Android
  • Versatile connectivity supported (802.11 b/g/n and more)
  • 232g light weight, 20% slimmer and 25% smaller than SPP-R200II
  • IP54 rated rugged design (with protective case)
  • 1.2 m drop resistant
  • Optional integrated card reader (MSR or MSR + SCR)
  • Long-lasting battery life
  • Print speeds up to 90 mm/sec (Receipt)
  • Linerless label printing (Optional)
  • Low-temp (-15°C) printing
NameSizeDownload
Brochure165kb spp-r210_brochure.pdf
Driver v1.2.06,165kb Bix_spp-r210_windows_driver_v1.2.0.zip

Products available to purchase

 SKUVendorName
SPPR210iBG BIXOLONSPP-R210 Bluetooth Mob Printer no MSR iOS android

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
Up to 48mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 90 mm/Sec (Receipt)
Up to 60 mm/Sec (Linerless)
12.5% pattern
Number of Columns
Font A - 32
Font B - 42
Font C - 42
Korean: 16
Chinese: 16
Japanese: 16
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Korean: 24 x 24
Chinese: 24 x 24
Japanese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
2D: Aztec, Data matrix, Maxicode, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels
Paper Width
58 mm
Paper Roll Diameter
Max Ø 30 mm
Paper Thickness
0.07+/- 0.005 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Status, Error and Battery Charge Indicator,
Paper feed button
Power Button
Emulation
BXL/POS
Memory
8Mbit SDRAM
4 Mbit FlashROM
Sensors
Paper End Sensor: Reflective Sensor
Paper Cover open: Mechanical Switch
Interfaces
Standard USB V2.0 FS
Model Dependant optional:
Bluetooth V3.0 + EDR (iOS & Android Support)
WLAN 802.11 b/g/n - (Infrastructure, Ad-hoc, Wi-Fi Direct) WEP40/104, WPA1/2 (PSK, EAP)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux/MAC CUPS Driver
Software Utilities
iOS SDK, Android SDK, Windows SDK, Chrome SDK, Xamarin SDK, Cordova Plugin
mPrint App (iOS)
Battery
Rechargeable 7.4V Li-ion 1200mAh
Charging time: up to 2.5 Hrs
MSR
Factory Option 3 Track
Optional Certifications: DUKPT, T-DES
External Dimensions (WxDxH)
79.0 x 116.0 x 36.5 mm
Weight
Including Battery Approx. 222 g
Including MSR & Battery Approx. 232 g
Operating Environment
-15 - 50°C
10 - 80% RH None condensing
Storage Environment
-30 - 70°C
10 - 80% RH None condensing
Environmental Sealing
IP54 (With Protective case)
Mechanical Shock
Drop Spec 1.2m
Reliability
Printhead 50 km
Battery: Rechargeable up to 500 times
EMC/Safety Standards
UL, FCC Class A, TUV-GS, CE 0560, C-Tick
