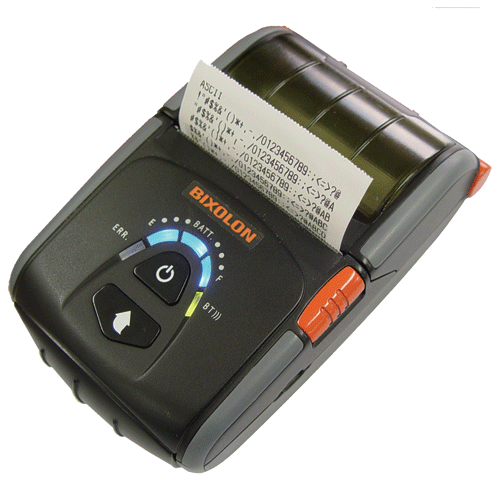

BIXOLON SPP-R200III 2" Portable Thermal Printer Series

(Product may vary from image. Rely only on description for purchasing decisions.)

BIXOLON Mobile Printer SPP-R200III is the update on the SPP-R200II Printer, a small and lightweight mobile receipt printer. A prudent choice for any mobile receipt printing application where you need fast, on-demand printing with speeds up to 100mm per second

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Rugged 2" Mobile Printer
  • Damage-resistance to multiple drops of up to 2.1 meters
  • Rubber over-moulding
  • Faster printing speed up to 100mm/sec
  • Long lasting Lithium-ion battery (7.4V, 1200mAh)
  • Operation : 6.2 hours (approx. 10x ø40mm rolls per battery charge)
  • Stand-by : 24 hours once fully charged (Bluetooth model in power save mode)
  • Apple® MFi certified model (Auto-switchable from iOS mode to standard Bluetooth mode)
  • Supporting user-defined fonts, graphics, formats, layouts, and logos
  • One touch cover open and easy paper loading
  • 4 step indicator for battery left and connectivity status
NameSizeDownload
Brochure476kb spp-r200iii_brochure.pdf
Usr Manual3,169kb spp-r200iii_ume_rev_1_01.pdf
Windows Driver6,481kb BIX_spp-r200iii_windows_driver_v1.0.8.zip
OPOS Driver8,487kb BXL_opos_driver_setup_en_v4.4.1.zip

Products available to purchase

 SKUVendorName
SPPR200IIIiBG BIXOLONSPP-R200III Bluetooth Printer no MSR iOS Android S
SPPBattChg BIXOLONBattery Charger for SPP-R200
SPP200IIBCLIP BIXOLONBelt Clip for the SPP-R200II
SPPBSTRAP BIXOLONBelt Strap for SPP Mobile Printers
SPPVChrg BIXOLONCar Cig. Jack Charger for SPP2
AD-SPP2 BIXOLONPower Supply for the SPPR200 Portable Printer
SPP2PCASE BIXOLONProtective Case for the SPP-R200
SPP200QBCHARG BIXOLONQuad Battery Charger
CAB-SPP2IIR BIXOLONRS232 Cable for the SPPR200II 400 300
SPP200STBATT BIXOLONSpare Battery for SPP-R200
CAB-SPP2IIU BIXOLONUSB Cable for the SPPR200II 400 300
T5736 GOODSONThermal 57 X 36 Paper Rolls Bx50

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Printing Method
Line Thermal Dot Printing
Printing Width
Up to 48mm
Dot Pitch
203 dpi
Printing Speed (Max.)
Up to 100 mm/Sec (Receipt)
Up to 80 mm/Sec (Linerless)
12.5% pattern
Number of Columns
Font A - 32
Font B - 42
Font C - 42
Korean: 16
Chinese: 16
Japanese: 16
Character Size
Font A: 12 x 24 Dots
Font B: 9 x 17 Dots
Font C: 9 x 24 Dots
Korean: 24 x 24
Chinese: 24 x 24
Japanese: 24 x 24
Character Table/Code Pages
Alphanumeric: 95
Expanded Graphics 128x33 page
International Character: 32
Bar-code Type
1D: Coda Bar, Code 39, Code 93, Code 128, EAN-8, EAN-13, ITF, UPC-A, UPC-E
2D: Aztec, Data matrix, GS1 Databar, Maxicode, PDF417, QR Code
Line Spacing
Paper feed method
Friction
Paper Type
Thermal Paper Roll or Labels
Paper Width
58 mm
Paper Roll Diameter
Max Ø 40 mm
Paper Thickness
0.07+/- 0.005 mm
Paper Supply Method
Easy Paper Loading, Drop in and Print
Auto Cutter
N/A
Indicators/Controls
Power and Battery Charge Indicator, Paper feed button
Emulation
BXL/POS
Memory
64Mbit SDRAM
32 Mbit FlashROM
Sensors
Paper End Sensor: Reflective Sensor
Paper Cover open: Mechanical Switch
Interfaces
USB V2.0 FS
Serial
Model Dependant:
Bluetooth V3.0 + EDR (iOS & Android Support)
WLAN 802.11 b/g/n - (Infrastructure, Ad-hoc, Wi-Fi Direct) WEP40/104, WPA1/2 (PSK, EAP)
Driver available
Windows Driver, OPOS Driver, JPOS Driver, Linux CUPS Driver
Software Utilities
iOS SDK, Android SDK, Windows SDK
Battery
Rechargeable 7.4V Li-ion 1200mAh
Charging time: up to 2.5 Hrs
MSR
Factory Option 3 Track
Optional Certifications: DUKPT, T-DES
External Dimensions (WxDxH)
79.5 x 126.7 x 43.6 mm
Weight
Including Battery Approx. 228 g
Including MSR & Battery Approx. 238 g
Operating Environment
-15-50°C
10-80% RH None condensing
Storage Environment
-30-70°C
10-80% RH None condensing
Environmental Sealing
IP54 (With Protective case)
Mechanical Shock
Drop Spec 2.1m
Model with MSR 1.5m
Reliability
Printhead 50 km
Battery: Rechargeable up to 500 times
EMC/Safety Standards
UL, FCC Class A, TUV-GS, CE 0560, C-Tick
