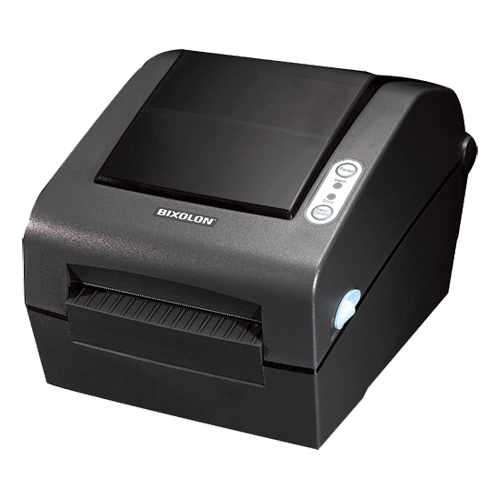

BIXOLON SLP-DX420 Direct Thermal 4" Label Printer ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The BIXOLON SLP-DX420 is the updated version of the succesfull SLP-D420 Label Printer. It is a direct thermal label printer that offers a proven and reliable label printing solution in the marketplace today. It is ideal for a vast number of applications that require a dependable and cost effective barcode printer. The upgrade has brought higher speed, higher memory capacity with more fonts preloaded.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Direct Thermal Label Printer
  • Fast Print Speed 7 inches Per Second (178mm per second) for 203dpi
  • High speed USB 2.0 supported.
  • High resolution 203 dpi (300 dpi optional ) printing
  • Bigger memory capacity providing 128Mb flash memory & 64Mb SDRAM
  • Short label (minimal height of label up to 6mm) printing supported
  • Intelligent leap-over™ (Detect empty label and leap over next label automatically)
  • Optional external paper supplier for bigger size of paper
  • Lower power consumption, power save mode, EnergyStar Certified
  • Free label design program Label Artist provided
NameSizeDownload
Brochure323kb slpdx420_brochure.pdf
User Manual1,603kb slpdx420x_dx423x_ume.pdf
Windows Driver7,139kb BIX_SLP-DX420_V5.0.02.exe

Products available to purchase

 SKUVendorName
CAB-D9MD9FExt GOODSON2m DB9M to DB9F straight Ext
CAB-PRUSB GOODSONUSB 2.0 A to B Cable
LAB2828TWR25 GOODSONRemovable Thermal Lab 28x28x25 White
LAB4028TWR25 GOODSONRemovable Thermal Lab 40x28x25
LAB6025TWR25 GOODSONRemovable Thermal Lab 60x25x25
LAB7025TWR25P GOODSONRemovable Thermal Label 70 x 25 x 25 Perforated
LAB10136TWS25P GOODSONThermal Label 101 x 36 x 25
LAB4015TWS25 GOODSONThermal Label 40 x 15 x 25 White
LAB4028TWS40 GOODSONThermal Label 40 x 28 x 40 Bx 5 2000 Labels Roll
LAB4039TWS76 GOODSONThermal Label 40 x 39 x 76 white
LAB5028TWS25 GOODSONThermal label 50 x 28 x 25 OD 115mm
LAB5028TWS40P GOODSONThermal Label 50 X 28 x 40 Permanent Perforated
LAB5025TWS25P GOODSONThermal Label 50x25x25 Perforated
LAB5625TWS25 GOODSONThermal Label 56 x 25 x 25 770 Label roll Bx 10
LAB6060TWS40 GOODSONThermal Label 58x58x40
LAB6025TWS40 GOODSONThermal Label 60 x 25 x 40
LAB6040TWS40 GOODSONThermal label 60x 39x 40 White
LAB7025TWS40P GOODSONThermal Label 70 X 25 X 40 Perforated
LAB8028TWS25 GOODSONThermal white label 80 x 28 x 25

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
GK420DGK-420D Thermal Label Printer

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
SLP-DX420: 108 mm
SLP-DX423: 105.7 mm
Media width
Min. 20 mm to Max. 110 mm
Media Tickness
Min. 0.06 mm to Max. 0.20 mm
Sensors
Transmissive, Reflective (adjustable), Head open
Roll Diameter
Max Ø 130 mm
Dot Pitch
SLP-DX420: 203 dpi
SLP-DX423: 300 dpi
Printing Speed (Max.)
SLP-DX420 Max. 178 mm/sec, 7 ips
SLP-DX423 Max. 127 mm/sec, 5 ips
Bar-code Type
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font
Character Sets:
•10 SLCS Resident Bitmap Fonts
• One SLCS Resident Scalable Font
•16 BPL-Z™ Resident Bitmap Fonts
• One BPL-Z™ Resident Bitmap Font
• 5 BPL-E™ Resident Bitmap Fonts
• 23 Code Page
• Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation
SLCS, BPL-Z™, BPL-E™
BASIC interpreter for data stream processing and ticketing emulations.
Controls
Function
CPU
TBA
Memory
SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB
Interfaces
USB (2.0 full speed), RS-232C & Parallel interface
or USB (2.0 full speed) & Ethernet (10/100)
Can also have WLAN with USB Dongle
Auto Cutter
Optional
Driver available
Windows Driver (EURO Plus/Seagull™), OPS Driver, Linux CUPS Driver, MAC Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™
Android SDK
Operating Environment
Temperature: 0 to 40 °C
Humidity: 10 to 80% (no condensation)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH)
194 × 243 × 171 mm
Weight
2.20 Kg
Power Supply
100-240V 50/60Hz
