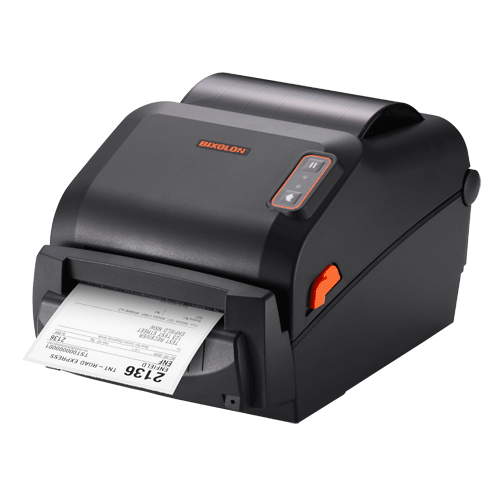

BIXOLON 4" Direct Th Label Pr 203dpi USB RS Eth BT LE Cutt

(Product may vary from image. Rely only on description for purchasing decisions.)
  • XD5dC-40UREBLE
  • XD5-40dCEBK/AUS
  • BIXOLON
  • XD5-40d
    • Login to view pricing and availability

XD5-40d Direct Thermal 4" Label Printer, 203dpi with Auto Cutter. USB, USB Host, RS232, Ethernet and Bluetooth (LE) interfaces

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
24 months
  • Fast processing and print speeds of up to 7 ips (XD5-40d), 6 ips (XD5-40t)
  • Optional 300 dpi high resolution choice for fine print quality
  • Dual-band WLAN (5 GHz and 2.4 GHz)
  • Dual-mode Bluetooth V4.1 Classic and LE
  • Extended memory space up to 256MB SDRAM, 256MB Flash
  • A suite of SDKs for major operating systems
  • An adjustable media guide and a holder
  • Compact clamshell design with intuitive menu buttons and optional LCD Display
  • Suitable for both 1/2-inch and 1-inch core ribbon (74 m and 300 m)
  • Field-installable Peeler and Auto Cutter
  • Compatible with label design software;BIXOLON’s Label Artist™ and Seagull's BarTender®
  • Twin Function™ supported: Copy printer setting and data by USB
  • SNMP enabled WLAN functionality
  • XPM™ & XCM™ - Web-based printer management software and connection app
NameSizeDownload
Brochure163kb XD5-40Series_brochure.pdf
User Manual3,221kb XD5-40t_Manual_user_ENG_V1.02.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
GK420DGK-420D Thermal Label Printer
SLPDX420SLPDX420 4" Direct Thermal Label Printer

Parts documents

Parts layout details

Specifications
Printing Method
Direct Thermal
Printing Width
XD5-40d: up to 108 mm
XD5-43d: up to 105.7 mm
Media width
Min. 15 mm to Max. 118 mm
Media Tickness
Min. 0.06 mm to Max. 0.20 mm
Sensors
Transmissive, Reflective (adjustable), Head open
Roll Diameter
Max Ø 127 mm
Dot Pitch
XD5-40d: 203 dpi
XD5-43d: 300 dpi
Printing Speed (Max.)
XD5-40d: 178 mm/sec (7 ips)
XD5-43d: 127 mm/sec (5 ips)
Bar-code Type
1D: Codabar, Code 11, Code 39, Code 93, Code 128, EAN-13, EAN-8, Industrial 2-of-5, Interleaved 2-of-5, Logmars, MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5, UPC/EAN extensions, UPC-A, UPC-E, IMB
2D: Aztec, Codablock, Code49, Data Matrix, MaxiCode, MicroPDF417, PDF417, QR Code, TLC39
Font
Character Sets:
•10 SLCS™ Resident Bitmap Fonts
• One SLCS™ Resident Scalable Font
•16 BPL-Z™ Resident Bitmap Fonts
• One BPL-Z™ Resident Bitmap Font
• 5 BPL-E™ Resident Bitmap Fonts
• 23 Code Page
• Unicode supported (UTF-8, UTF-16LE, UTF-16BE)
Graphics: Supporting user-defined fonts, graphics, formats, and logos
Emulation
SLCS™, BPL-Z™, BPL-E™
Controls
Function
CPU
NA
Memory
SDRAM: 64MB
Flash (Non-Volatile Memory) 128MB
Optional:
64MB SDRAM & 128MB Flash
or
256MB SDRAM & 256MB Flash
Interfaces
Standard USB + USB Host
optional extra:
Serial + Ethernet or
Serial + Ethernet + WLAN (802.11a/b/g/n dual Band) or
Serial + Ethernet + Bluetooth (V4.2 Classic / LE, Class 1 MFI certified
Auto Cutter
Optinal
Driver available
Windows Driver (EURO Plus/Seagull™), OPOS/JPOS Driver, Linux CUPS Driver, MAC CUPS Driver, Virtual COM USB/ Ethernet Driver, Utility Program, Label Artist™II, Bartender Ultralite
SAP® Device Driver
Android, iOS, Windows SDK & LINUX SDK, Chrome SDK, Xamarin SDK
Operating Environment
Temperature: 0 to 40 °C
Humidity: 10 to 80% (no condensation)
Storage Environment
Temperature: -20 to 60 °C
Humidity: 10 to 90% (no condensation)
External Dimensions (WxDxH)
194 × 248 × 169 mm
Weight
1.89 Kg
Power Supply
External Power Supply 100-240V 50/60Hz
EnergyStar Certified
