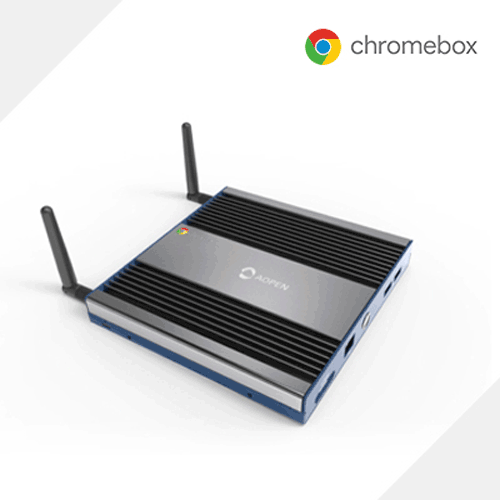

AOPEN Google Commerical ChromeBox ***Obsolete***

(Product may vary from image. Rely only on description for purchasing decisions.)

The AOPEN Chromebox Commercial is a highly reliable and powerful device that operates 24/7 under tough conditions (up to 60ºC/140ºF*). It sets itself apart from any Chromebox, being a commercial grade device, allowing speedy and secure signage from the cloud using Google Chrome OS.Deployment and management of the devices have never been easier using Chrome Device Management. Use the signage app of your preference available via the Chrome Web Store to control what’s on the screen. The tough design including the industrial components makes this one of the strongest Chromebox devices available on the market today.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Tough and tamperproof design for 24/7 operability in public spaces
  • Small form factor for easy installment behind displays or integration in kiosks, comes with L-shaped mount
  • The solid-state and fanless design ensure a first-rate performance in challenging situations
  • AC Power Auto Recovery (APAR)
  • Included dual band antenna offers a wide reach
  • 64GB SSD
  • 4GB DDR3L RAM
  • HDMI Port & Display Port
  • RS232 Port
NameSizeDownload
Brochure238kb chromebox_brochure.pdf

Products available to purchase

 SKUVendorName
CAB-AOHDMi1.5 AOPEN1.5m HDMI Cable
CAB-AOHDMI-VGA AOPENCable Converter HDMI to VGA
CAB-AOPRJ48D9M GOODSONCable RJ48 (AOpen RS232) to Printer DB9M

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Type: Intel Celeron N2930 Quad Core CPU 1.86GHz (Turbo to 2.16GHz)
Graphics: Integrated Graphics (313Mhz Base, 854Mhz Turbo)
Memory
Dual Channel
Type: DDRIIIL 1.35V SO-DIMM
Speed Grade: 1333Mbps
Standard 4GB,
Storage device(s)
1x 32GB SSD
I/O Ports
Front Panel IO
USB 2.0 Port x 2
COM Port (RJ50) x1
mSD Card Slot x1

Rear Panel IO
Audio Jack x1
HDMI Port x1
DisplayPort x1
Gigabit Ethernet x1
DC 19/12V Connector
Antenna Jack x2
Audio
Maxim MAX98090
OS Support
Google ChromeOS
Operating Environment
0 ~ +40 °C,
90% RH non condensing @ 40 °C,
Storage Environment
-20 ~ +60 °C
90% RH non Condensing @ 40 °C,
Power Supply
Output: 19V DC Power Adapter (65W) 3.42A
Input: AC 100V-240V 1.5A @ 50-60Hz
External Dimensions (WxDxH)
166 x 158 x 25 mm
Weight
1.12 Kg
EMC/Safety Standards
UL/CB/CE/FCC/ErP/RCM
