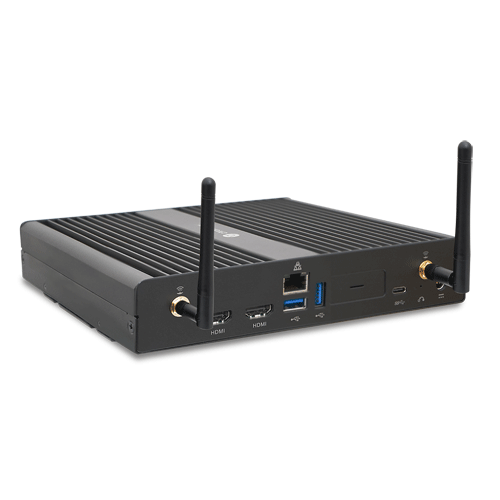

AOPEN Google ChromeBox Commercial III with Core i3-1215U

(Product may vary from image. Rely only on description for purchasing decisions.)
  • AOBC51253-CHROME
  • 91.CX200.GU20
  • AOPEN
  • BC5125CHROMEIII
  • Login to view pricing and availability

Google Chromebox Commercial 3 - BC5125High performance Intel® Core i3-1215U, 4K2K 60Hz UHD Video Playback supportHDMI2.1 x 2, USB3.2 x 4, USB Type C x 2, Giga LAN x 1, Dual band Wifi, Bluetooth

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Digital Media Engine with Chrome OS
  • Aluminum and SECC metal construction for durability.
  • Solid-state and Fanless design, ideal for non-stop, 24/7 operation
  • Runs up to 4x UHD (4k) display @60Hz in commercial environments (requires optional expansion port)
  • Small form factor for easy installment behind displays or integration in kiosks
  • 3 year warranty, extendable to 5 years for peace of mind
  • Design to operate in a wide environmental temperature range of 0°C~50°C
  • AC Power Auto Recovery (APAR) for always-on functionality
NameSizeDownload
Brochure904kb Chromebox_Commercial3_Brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
BC5125C; Intel® Celeron 7305
BC5003: Intel® Core i3-1215U
Video Graphics: Intel Iris Xe Graphics integrated on CPU
Memory
Dual Channel
Type: DDR4 SO-DIMM x 2
Data rate 3200 MHz
Standard 4GB
Maximum 8GB (4Gx2)
Storage device(s)
Standard EMMC 64GB M.2 SSD optional 128GB
2.5" SATA HHD Bay
I/O Ports
Front Panel IO
USB 3.2 Port x 2 (BC1.2 Charging, 5V/1.5A
USB Type-C Port x 1 (USB4 Gen 3 Data transfer/Power Delivery 15W/DisplayPort)
3.5mm Audio Jack x 1 (Combo)
Power Button x 1
External Power switch Port

Rear Panel IO
DC Jack x 1
HDMI 2.1 Port x 2
USB 3.2 Port x 2
USB Type-C Port x 1 (USB4 Gen 3 Data transfer/Power Delivery 15W/DisplayPort)
RJ45 LAN Jack x 1 (Giga Lan 10/100/1000Mbps)
Dual Band Antenna Holes x 2 (Wifi Antenna's included in Box)
Wifi: WiFi 6E 802.11 b/g/n/ac/ax + BT5.2
Factory Option: Configurable Port: HDMI2.1 / DP1.4a (minimum order Qty)
Audio
OS Support
Google ChromeOS
Operating Environment
0 ~ +50 °C
95% RH non Condensing
Storage Environment
-20 ~ +60 °C
95% RH non Condensing
Power Supply
19V/90W AC Adapter
External Dimensions (WxDxH)
200 x 186.2 x 38 mm
Weight
1.64 Kg
EMC/Safety Standards
UL/CB/CE/FCC/ErP/RCM
