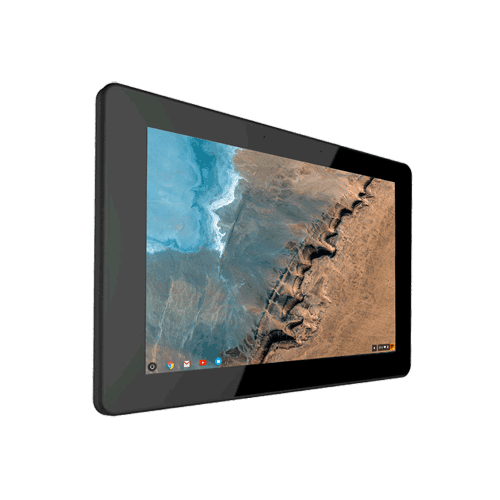

AOPEN Google ChromeBase Mini 10"

(Product may vary from image. Rely only on description for purchasing decisions.)
  • AOWT10-CHROMEMINI
  • 91.WTG00-DA40
  • AOPEN
  • WT10CHROME
    • Login to view pricing and availability

Google ChromeBase Mini 10"

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • A commercial grade multi-touch, all-in-one solution
  • Tough and tamperproof design for 24/7 operability in public spaces
  • High quality camera and speakers that meet Chrome video conference and Hangouts Requirements
  • Wide viewing angles in landscape and portrait
  • Multiple mounting options: recessed surfaces, wall mounts and kiosks.
  • Optional Chrome Device Management to save valuable time, installation cost, programming and maintenance.
NameSizeDownload
Brochure324kb chromebase_mini_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Type: Rockchip RK3288C Quad-core Cortex-A17 turbo up to 1.8GHz
Graphics: ARM Mali-T764 MP4GPU clocked at 600 MHz
Memory
Dual Channel 4GB LPDDR3
Storage device(s)
EMMC 5.0 16GB
Display
10.1" AHVA LCD Panel 250 Nits
IP54 dust and water protection to the front display
Resolution
1280 x 800
Tilt Angle
NA
Touch Panel
PCT Multi Touch Surface (10 point touch)
I/O Ports
4 x RS-232 Ports (RJ50)
3 x USB 2.0 Ports
1 x HDMI Port
1 x 10/100/1000Mb Ethernet Port
1 x Audio Combo JAck (Line in/Line out)
Wide Voltage Range DC 12~60V Power inlet
I/O Devices (Intergrated)
FHD Webcam (2M Pixel)
Internal Stereo Digital Mic
Audio
Audio Combo Jack (Line in/Line out)
OS Support
Chrome OS
Environmental Sealing
IP54 grade Dust- & Water to Front Panel
Fanless Design
Operating Environment
0°C ~ +40 °C,
90% RH non condensing @ 40 °C
Storage Environment
-20 °C ~ +60 °C
90% RH non Condensing @ 50 °C
Power Supply
19.5V DC Power Adapter
External Dimensions (WxDxH)
270 x 179 x 29.9 mm
Weight
1.22 kg
