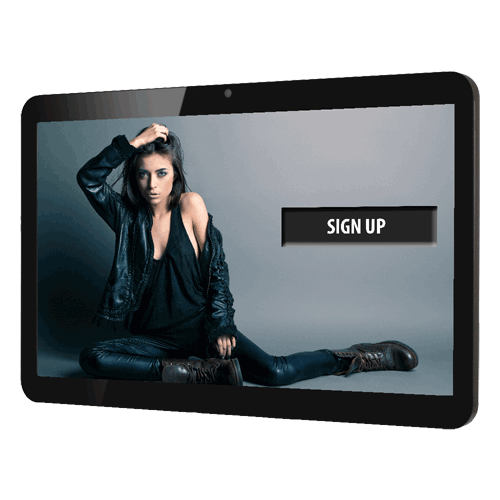

AOPEN e-Tile WT-22 All-in-one 21.5" Digit Media Dsiplay System

(Product may vary from image. Rely only on description for purchasing decisions.)

The eTILE 22IIM is an ultra-thin commercial interactive all-in-one touch panel. Based on CELERON 2020M technology, this powerful dynamic PC tile will enhance the interactive experience. Furthermore it incorporates a high quality 16:9 Full HD 21,5" LCD screen with a secure cable and port cover to minimize user tampering.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Ultra-thin Multi media all in one Touch System
  • PCT Multi Touch Touchscreen
  • Secure cable and port cover
  • Hidden keypad
  • Concealed on/off controls
  • IP65 Grade Dust and Waterproof to the Front
  • 21.5” LED LCD Screen 1920 x 1080 resolution
  • Wide viewing angle
  • Equipped with Intel® Celeron 2020M CPU
  • 4G DDR3 memory expandable to 8G
  • Also available with Intel® Core™ i3, i5, i7 mobile Processor
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Standard Intel® 2nd and 3rd generation Intel® B980 Pentium,
also availble with Intel® Core™ i3, i5, i7 mobile processor TDP=35W (special order)
Memory
DDR3, SO-DIMM socket x 2, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 320 GB HHD
Can be order with SSD (special order)
Display
21.5" LED LCD Display
250 Nits
16:9/Full HD
Resolution
1920 x 1080
Tilt Angle
NA
Touch Panel
PCT Multi Touch Surface (10 point touch)
Pencil Hardness = 7H per ASTM D3363
Pen Hitting: more than 20,000,000 times (loading180g)
I/O Ports
2 x RS-232 Ports
2 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x 10/100/1000Mb Ethernet Port
1 x Line-out, 1 x Mic-in
1 x WebCam
I/O Devices (Intergrated)
1 MP Webcam
Audio
2W Stereo Speaker
OS Support
Windows 7 Pro embedded/ Windows 8 / Android 4.04
Environmental Sealing
IP65 grade Dust- & Waterproof to Front Panel
Operating Environment
NA
Storage Environment
NA
Power Supply
19.5V DC Power Adapter (120W)
External Dimensions (WxDxH)
526mm x 33mm x 333mm
Weight
6 Kg
