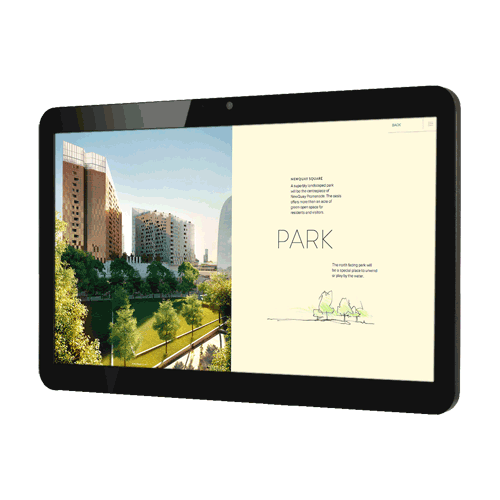

AOPEN e-Tile WT-19MFB 18.5" Fanfree All-in-one Digital Media

(Product may vary from image. Rely only on description for purchasing decisions.)

The new Fan free eTILE 19M with the Intel N2930 CPU is an ultra-thin and exceptionally powerful 18.5” multi-touch PC tile. Designed for commercial retail use, it also has a keen sense of style and aesthetic detail with a slick Piano Black construction that will enhance any shopper’s user experience. It’s the kind of device that will markedly improve the engagement between the customer and your brand as a result.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • Ultra-thin Multi media all in one Touch System
  • Fanfree design with Intel N2930 CPU
  • PCT Multi Touch Touchscreen
  • Secure cable and port cover
  • Hidden keypad
  • Concealed on/off controls
  • IP65 Grade Dust and Waterproof to the Front
  • 18.5” LED LCD Screen 1366 x 768 resolution
  • 4G DDR3 memory expandable to 8G
NameSizeDownload
Brochure238kb AOPEN_eTILE19FF_brochure.pdf

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
CPU
Intel® N2930 Fan free
Memory
DDR3, SO-DIMM socket x 2, max 8 GB, default 4 GB
Storage device(s)
In Australia Standard with 32GB SSD
Can be order with HDD or larger SSD (special order)
Display
18.5" LED LCD Display
250 Nits
16:9/HD
Resolution
1366 x 768
Tilt Angle
NA
Touch Panel
PCT Multi Touch Surface (10 point touch)
Pencil Hardness = 7H per ASTM D3363
Pen Hitting: more than 20,000,000 times (loading180g)
I/O Ports
4 x RS-232 Ports (RJ50)
2 x USB 2.0 Ports
2 x USB 3.0 Ports
1 x HDMI Port
1 x 10/100/1000Mb Ethernet Port
I/O Devices (Intergrated)
1 MP Webcam
Audio
1 x Mic in
1 x Speaker out
OS Support
Windows 7 Pro embedded/ Windows 8 / Android 4.04
Environmental Sealing
IP65 grade Dust- & Waterproof to Front Panel
Operating Environment
NA
Storage Environment
NA
Power Supply
19.5V DC Power Adapter (120W)
External Dimensions (WxDxH)
448mm x 30mm x 284mm
Weight
5 Kg
