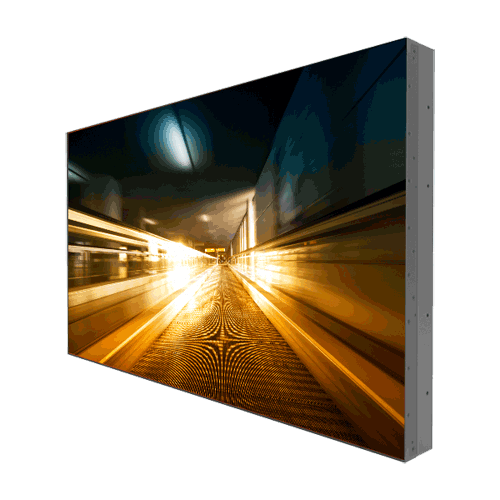

AOPEN DSD55-VA2 700 Nits 55" Videowall LCD Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)
  • AODSD55-VA2
  • 91.DSD01.G230
  • AOPEN
  • DSD55VA
    • Login to view pricing and availability

DSD55-VA2 700 Nits 55" Videowall LCD Monitor

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
3 months
  • 55" LCD Monitor for Video Wall
  • Available in 500 or 700 nits
  • Video Wall Matrix: Up to 10x10
  • Super Slim Bezel: 3.5mm, 3.8 mm
  • OSD Support
  • Keypad control/ IR Remote Control
  • Metal Framework
  • Auto Fan Control
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • Extra wide viewing Angle
NameSizeDownload
No Downloads

Products available to purchase

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
55" LED Backlit LCD Display
Aspect Ratio: 16:9
Colour/Gray Scale: 1073M/10bits
Pixel Pitch (HxW): 0.63 x 0.63
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
1400:1
Brightness
DSD55VA: 450 nits
DSD55VA2: 700 nits
Response time
N/A
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Input Signal
HDMI x1
DVI x 1
VGA x1
YPbPr x1
CVBS x1
S-Video x 1
Audio
N/A
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
N/A
External Dimensions (WxDxH)
1470mm x 285mm x 944mm
Slim Bezel : L\T : 2.45 mm ; R\B: 1.35 mm
Weight
28 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
