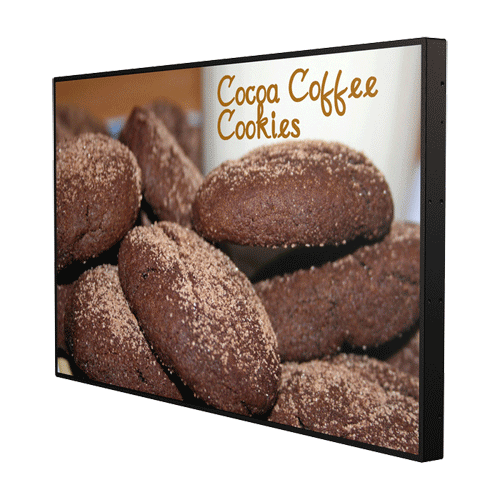

AOPEN DSD-65HE Digital Media Monitor Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD-65HE Series is a 65" LED LCD Monitor specially designed for Digital signage, high brightness with narrow bezel. Very well suited for Electronic Menu boards and high visibility in-store advertising

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 65" Wide LED LCD Monitor
  • Metal Cabinet
  • Extra Wide Viewing angle
  • Narrow Bezel
  • Fanless
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • High Brightness
  • Industrial grade
  • HDMI, DVI & VGA input
NameSizeDownload
Datasheet DSD-65HE285kb dsd65he_datasheet.pdf
Datasheet DSD-65HE2858kb dsd65he2_datasheet.pdf

Products available to purchase

 SKUVendorName
AODSD65-HE AOPENDSD65 450 NIts 65" LED LCD Monitor
AODSD65-HE2 AOPENDSD65 700 Nits 65" LED LCD Monitor
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-3070-UF ATDEC3070 Wall Mount Fixed Black
ATTH-3070-UT ATDEC3070 Wall Mount Tilt Black
ATTH-3070-UFP ATDECTelehook 3070 Wall Portrait Fixed Black
ATTH-3070-UTP ATDECTelehook 3070 Wall Portrait Tilt Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
65" LED Backlit LCD Display
Aspect Ratio: 16:9
Colour/Gray Scale: 1073M/10bits
Pixel Pitch (HxW): 0.744x0.744
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
DSD65HE: 450 nits
DSD65HE2: 700 nits
Response time
(G-to-G) 8 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Audio out x 1
Input Signal
HDMI x1
VGA x1
DVI x1
YPbPr x1
CVBS x1
Audio
Internal Speakers 5W x 2
Connector for 8W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 250W
at Standby Max. 1.5W
External Dimensions (WxDxH)
1512mm x 58mm x 882mm
Bezel Width L/R 36mm T/B 34mm
Weight
47.5 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
