AOPEN DSD-55VE Video Wall Monitor Series

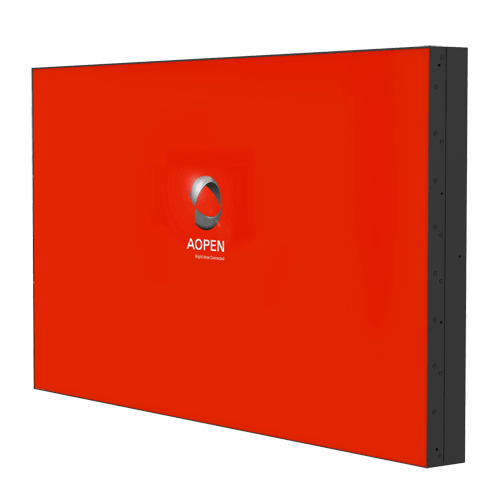

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD55-VE display is created to fit seamlessly in a 10x10 Videowall, with its thin bezel and metal framework the DSD55-VE is a reliable and robust solution for individual use as well as larger Video wall projects.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 55" LCD Monitor for Video Wall
  • Super Narrow Bezel
  • Video Wall up to 10x10
  • Metal Framework
  • Auto Fan Control
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • Extra wide viewing Angle
NameSizeDownload
Datasheet136kb DSD46-55VE_datasheet.pdf

Products available to purchase

 SKUVendorName
AODSD55-VE2 AOPENDSD55-VE2 800 Nits 55" Videowall LCD Monitor
AOHDMI4SPLIT AOPEN4-Way HDMI Splitter
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-VWP-160 ATDECTelehook Universal Video Wall Plate 160 cm
ATTH-VWP-050 ATDECTelehook Universal Video Wall Plate 50 cm
ATTH-VWP-080 ATDECTelehook Universal Video Wall Plate 80 cm
ATTH-VWV ATDECWall Universal Video Wall - Vertical Rail 400mm
ATTH-VWVP ATDECWall Universal Video Wall - Vertical Rail 800mm

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
55" LED Backlit LCD Display
Aspect Ratio: 16:9
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
DSD55VE: 450 nits
DSD55VE2: 700 nits
Response time
(G-to-G) 6.5 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Audio out x 1
Input Signal
HDMI x 2
VGA x 2
Audio
N/A
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 120W
at Standby Max. 1.5W
External Dimensions (WxDxH)
1470mm x 285mm x 944mm
Bezel Width L/R 3.5mm T/B 2.1mm
Weight
28 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
