AOPEN DSD-55HE Digital Media Monitor Series

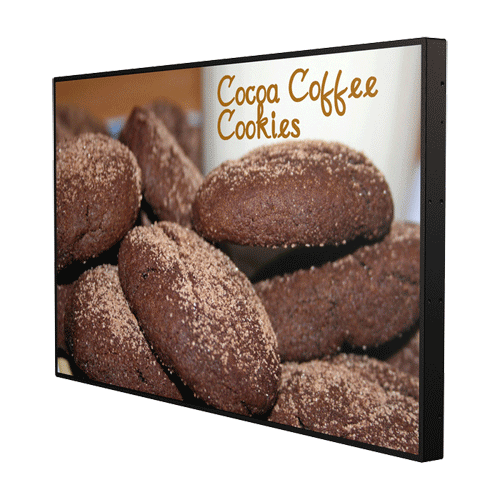

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD-55HE is a 55" LED LCD Monitor specially designed for Digital signage, high brightness with narrow bezel. Very well suited for Electronic Menu boards and high visibility in-store advertising

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 55" Wide LED LCD Monitor
  • Metal Cabinet
  • Extra Wide Viewing angle
  • Narrow Bezel
  • Fanless
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • High Brightness
  • Industrial grade
  • HDMI, DVI & VGA input
  • Optional IR Touch
NameSizeDownload
Datasheet DSD-55HE638kb dsd55he_datasheet.pdf
Datasheet DSD-55HE2293kb dsd55he2_datasheet.pdf
Datasheet DSD-55HE2 with Touch837kb dsd55he2-ir_datasheet.pdf

Products available to purchase

 SKUVendorName
AODSD55-HE2 AOPENDSD55 700 Nits 55" LCD Monitor narrow Bezel
AODSD55-HE AOPENDSD55 450 Nits 55" LCD Monitor narrow Bezel
AODSD55BMR22MNT AOPENMSR Brackets for Aopen 55" Optical Touch
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-3070-UF ATDEC3070 Wall Mount Fixed Black
ATTH-3070-UT ATDEC3070 Wall Mount Tilt Black
ATTH-3070-UFP ATDECTelehook 3070 Wall Portrait Fixed Black
ATTH-3070-UTP ATDECTelehook 3070 Wall Portrait Tilt Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
55" LED Backlit LCD Display
Aspect Ratio: 16:9
Colour/Gray Scale: 1073M/10bits
Pixel Pitch (HxW): 0.21x0.63
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
DSD55HE: 450 nits
DSD55HE2: 700 nits
Response time
(G-to-G) 6.5 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
DSD55HE & DSD55HE2: No Touch
DSD55HE2-IR: 2 Point IR Touch with USB Interface
4mm AG + AF Tempered Glass
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Audio out x 1
Input Signal
HDMI x 2
VGA x 2
Audio
Connector for 8W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 120W
at Standby Max. 1.5W
External Dimensions (WxDxH)
No Touch:
1239mm x 49mm x 710mm
Bezel Width 11.8mm

Touch:
1286mm x 67.2mm x 755mm
Bezel Width 34.8mm
Weight
No Touch: 28 Kg
Touch: 30 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
