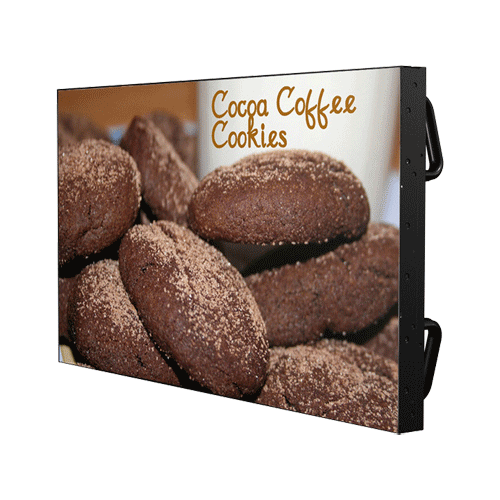

AOPEN DSD-46VE Video Wall Monitor Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD46-VE display is created to fit seamlessly in a 10x10 Videowall, with its thin bezel and metal framework the DSD46-VE is a reliable and robust solution for individual use as well as larger Video wall projects.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
3 months
  • 46" LCD Monitor for Video Wall
  • 500 (VE) or 700 (VE2) nits
  • Super Narrow Bezel
  • Video Wall up to 10x10
  • Metal Framework
  • Auto Fan Control
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • Extra wide viewing Angle
NameSizeDownload
Datasheet DSD-46VE848kb dsd46ve_datasheet.pdf
Datasheet DSD-46VE2829kb dsd46ve2_datasheet.pdf

Products available to purchase

 SKUVendorName
AODSD46-VE AOPENDSD46-VE 450 Nits 46" Videowall LCD Monitor
AOHDMI4SPLIT AOPEN4-Way HDMI Splitter
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-VWP-160 ATDECTelehook Universal Video Wall Plate 160 cm
ATTH-VWP-050 ATDECTelehook Universal Video Wall Plate 50 cm
ATTH-VWP-080 ATDECTelehook Universal Video Wall Plate 80 cm
ATTH-VWV ATDECWall Universal Video Wall - Vertical Rail 400mm
ATTH-VWVP ATDECWall Universal Video Wall - Vertical Rail 800mm

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
46" LED Backlit LCD Display
Aspect Ratio: 16:9
Colour/Gray Scale: 1073M/10bits
Pixel Pitch (HxW): 0.744x0.744
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
3500:1
Brightness
DSD46VE: 450 nits
DSD46VE2: 700 nits
Response time
(G-to-G) 6.5 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Audio out x 1
Input Signal
HDMI x1
VGA x1
YPbPr x1
CVBS x1
Audio
Internal Speakers 5W x 2
Connector for 10W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 115W
at Standby Max. 5W
External Dimensions (WxDxH)
1024mm x 112mm x 579mm
Bezel Width L/R 3.5mm T/B 2.1mm
Weight
20.5 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
