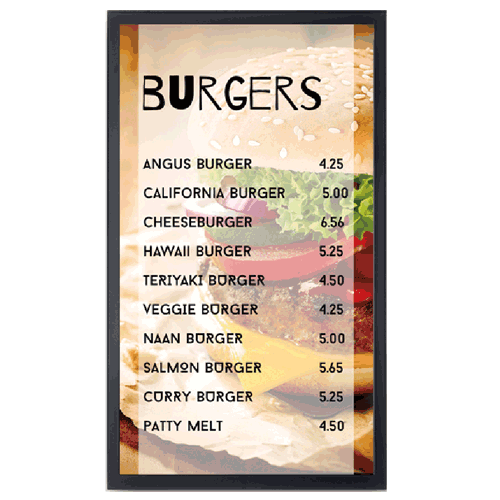

AOPEN DSD-46HE Digital Media Monitor

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD46-HE is a robust 46” display that has been developed to integrate in various environments. With its ultra-bright panel this display is guaranteed to attract attention and entice the passerby.

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
36 months
  • 46" LED LCD Monitor
  • Metal Cabinet
  • Extra Wide Viewing angle
  • Narrow Bezel
  • Fanless
  • RS232 remote control API utility support
  • Keypad control/ IR Remote Control
  • High Brightness
  • Industrial grade
  • HDMI & VGA input
  • Zoom and shrink scaling
  • Auto detection/ auto calibration
  • Thermal alarm and protection
  • OSD support
NameSizeDownload
No Downloads

Products available to purchase

 SKUVendorName
AODSD46-HE AOPENDSD46-HE 500 Nits 46" LCD Monitor
AODSD55BMR22MNT AOPENMSR Brackets for Aopen 55" Optical Touch
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-3070-UF ATDEC3070 Wall Mount Fixed Black
ATTH-3070-UT ATDEC3070 Wall Mount Tilt Black
ATTH-3070-UFP ATDECTelehook 3070 Wall Portrait Fixed Black
ATTH-3070-UTP ATDECTelehook 3070 Wall Portrait Tilt Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
46" LED Backlit LCD Display
Aspect Ratio: 16:9
Pixel Pitch (HxW): 0.53 x 0.53
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
500 nits
Response time
(G-to-G) 6.5 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
N/A
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
AC inlet x1 / AC outlet x1
Audio in x 2
Audio out x 1
Input Signal
HDMI x 2
VGA D-Sub x 2
Audio
Connector for 8W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC Input : 100~240VAC; AC Output: 100~240VAC
Power Consumption
Max. 115W
External Dimensions (WxDxH)
1183mm x 239mm x 784mm
Bezel Width 11.8mm
Weight
21 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
