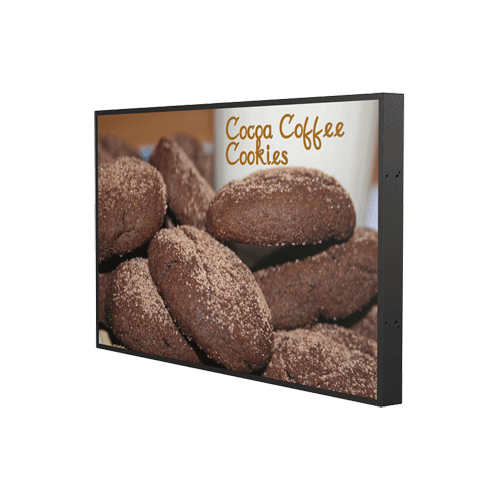

AOPEN DSD-42HE Digital Media Monitor Series

(Product may vary from image. Rely only on description for purchasing decisions.)

The DSD-42HE is a 42" LED LCD Monitor specially designed for Digital signage, high brightness with narrow bezel. Very well suited for Electronic Menu boards and high visibility in-store advertising

Private Products

Warranty specified is Back to Base (BTB) warranty Goodson Imports P/L.
Warranty commencement date is date of hardware Invoice.
Warranty covers Manufacturers Faulty Workmanship
12 Months on Print Head
2 Months on Touch Screen
Warranty excludes:

  • Power supply
  • Interface and Power Cables
  • Consumable products
  • Options
  • Software and Data Recovery
3 months
  • 42" LED LCD Monitor
  • Metal Cabinet
  • Extra Wide Viewing angle
  • Narrow Bezel
  • Fanless
  • Thermal Alarm & Protection
  • RS232 remote control API utility support
  • Remote Controller
  • High Brightness
  • Industrial grade
  • HDMI & VGA input
  • Optional IR Touch
NameSizeDownload
Datasheet848kb dsd42he_datasheet.pdf
Datasheet DSD-42HE with Touch841kb dsd42he-ir_datasheet.pdf

Products available to purchase

 SKUVendorName
AODSD42-IR2 AOPENDSD42 500 Nits 42" LCD Mon w 2nd genIR Touch
AODSD42-IR AOPENDSD42 500 Nits 42" LCD Monitor with IR Touch
AODSD42-HE AOPENDSD42-HE 500 Nits 42" LCD Monitor
CAB-HDM1m GOODSON1mtr Premium High Speed HDMI Cable
CAB-HDM2m GOODSON2mtr Premium High Speed HDMI Cable
ATTH-3070-UF ATDEC3070 Wall Mount Fixed Black
ATTH-3070-UT ATDEC3070 Wall Mount Tilt Black
ATTH-3070-UFP ATDECTelehook 3070 Wall Portrait Fixed Black
ATTH-3070-UTP ATDECTelehook 3070 Wall Portrait Tilt Black

All Vendor Sku's for this Products

This product is equivalent to the following products

SKUDescription
No Products to Display

Parts documents

Parts layout details

Specifications
Display
42" LED Backlit LCD Display
Aspect Ratio: 16:9
Colour/Gray Scale: 1073M/10bits
Pixel Pitch (HxW): 0.4845x0.4845
Display Orientation
Portrait or Landscape
Resolution
1920 x 1080
Viewing Area
N/A
Contrast Ratio
4000:1
Brightness
500 nits
Response time
(G-to-G) 8 ms
View Angle
(H/W) 178/178
Tilt Angle
N/A
Touch Panel
DSD42HE & HE2 : No Touch
DSD42HE-IR: 2 Point IR Touch with USB Interface
3mm AG + AF Tempered Glass
I/O Ports
RS232: in x1 out x1 (Used for API utility support)
Audio in x 2
Audio out x 1
Input Signal
HDMI x 2
VGA x 2
Audio
Connector for 8W x 2 External Speakers
OS Support
N/A
Environmental Sealing
N/A
Operating Environment
0 ~ +40 °C, 10 ~ 80% RH
Storage Environment
-20 ~ +60 °C, 10 ~ 80% RH
Power Supply
AC 100~240V 50/60Hz
Power Consumption
Max. 110W
at Standby Max. 1.5W
External Dimensions (WxDxH)
962mm x 52mm x 555mm
Bezel Width 11.8mm
Weight
16.7 Kg
EMC/Safety Standards
C-Tick, CE, FCC, CB, BSMI. RoHS
